MiniNET

Special design and thermoplastic construction are perfectly adapted to such diverse surroundings as stores, bank branch offices, industrial settings, etc. ideal choice for any small voice/data, DSL telephony, Internet or video conferencing installation, compatible with Wireless technology.

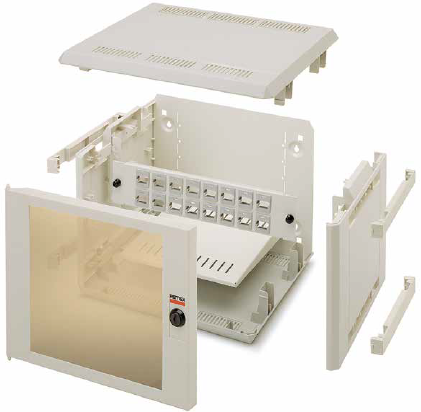

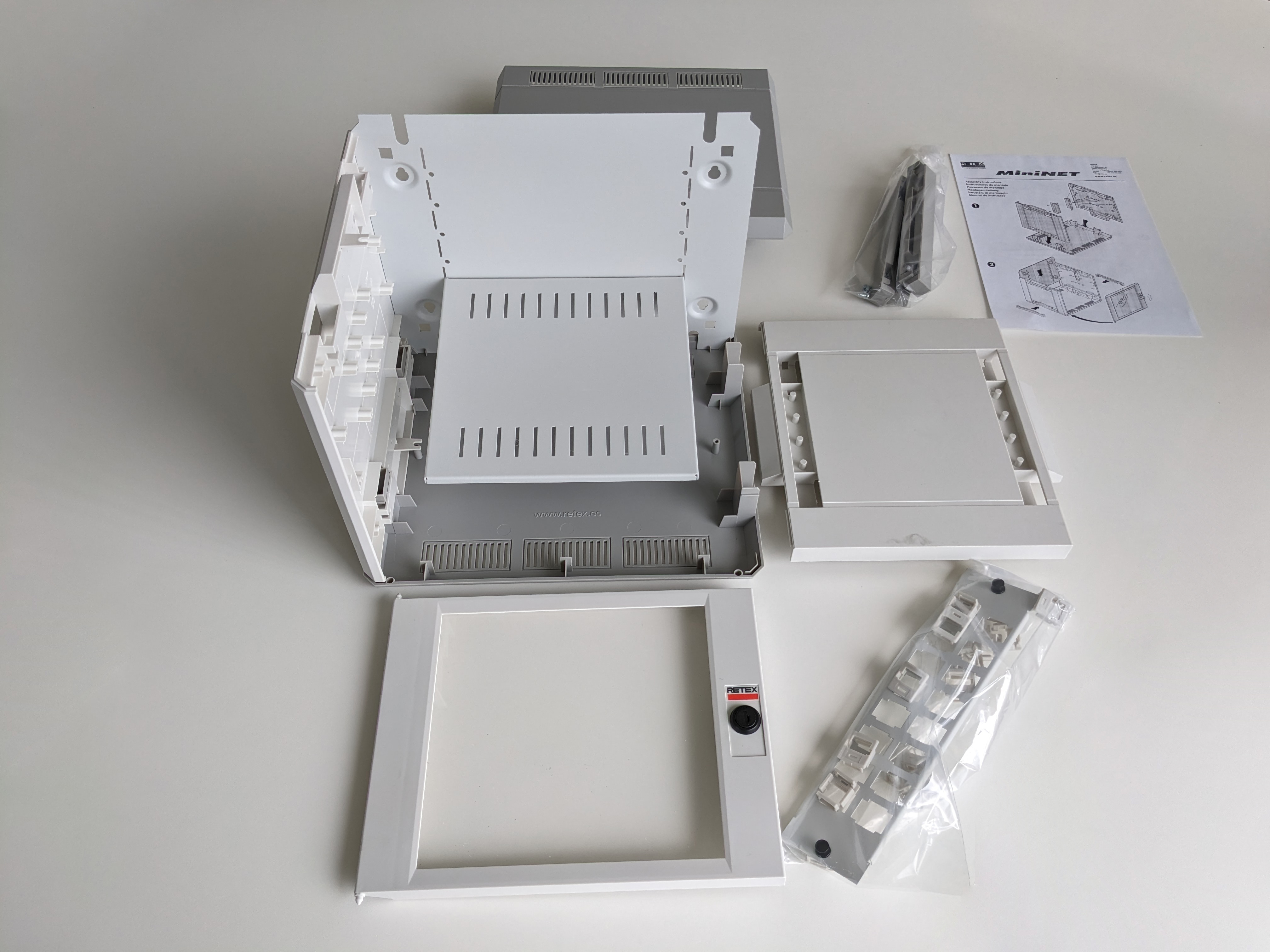

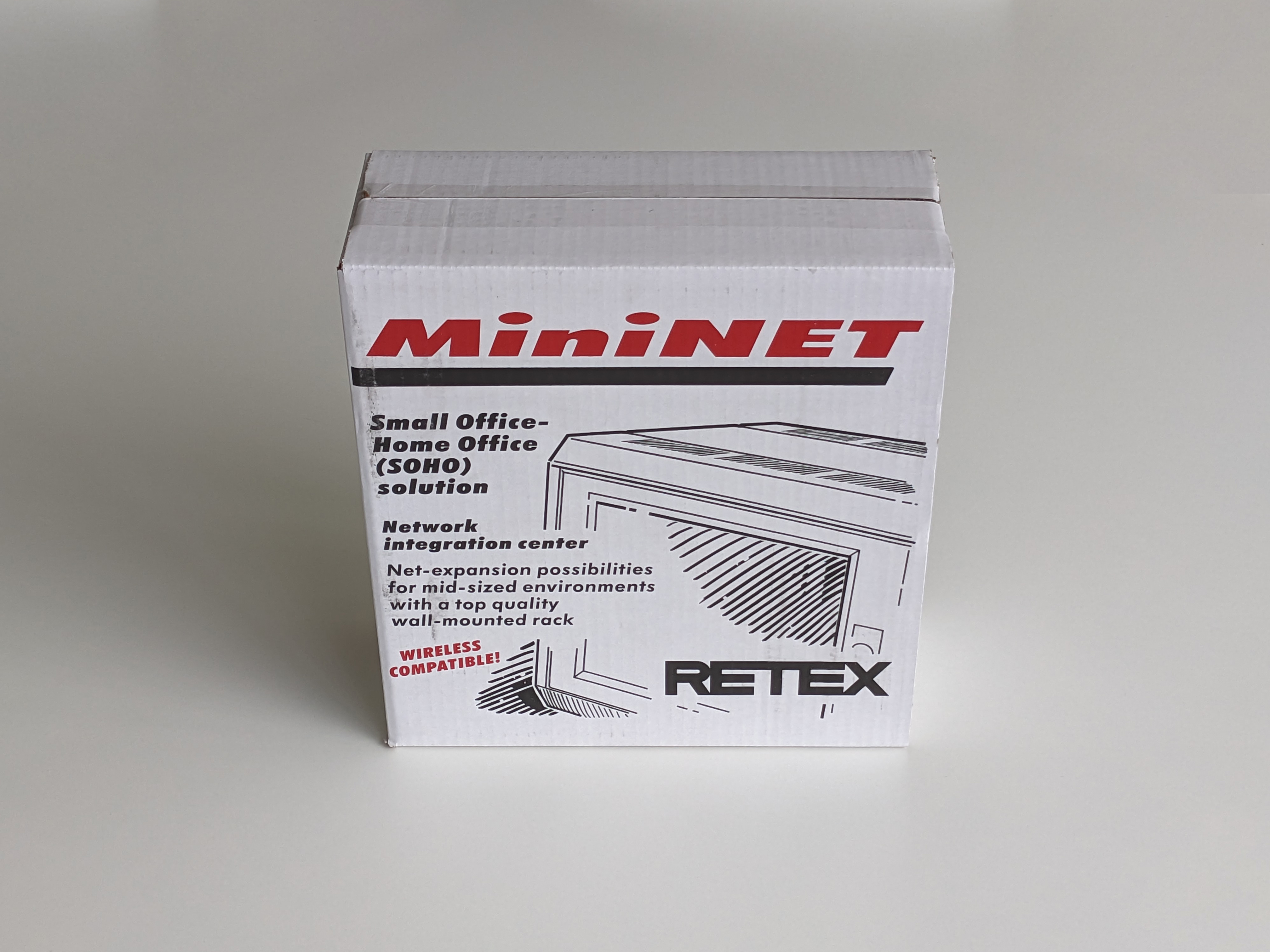

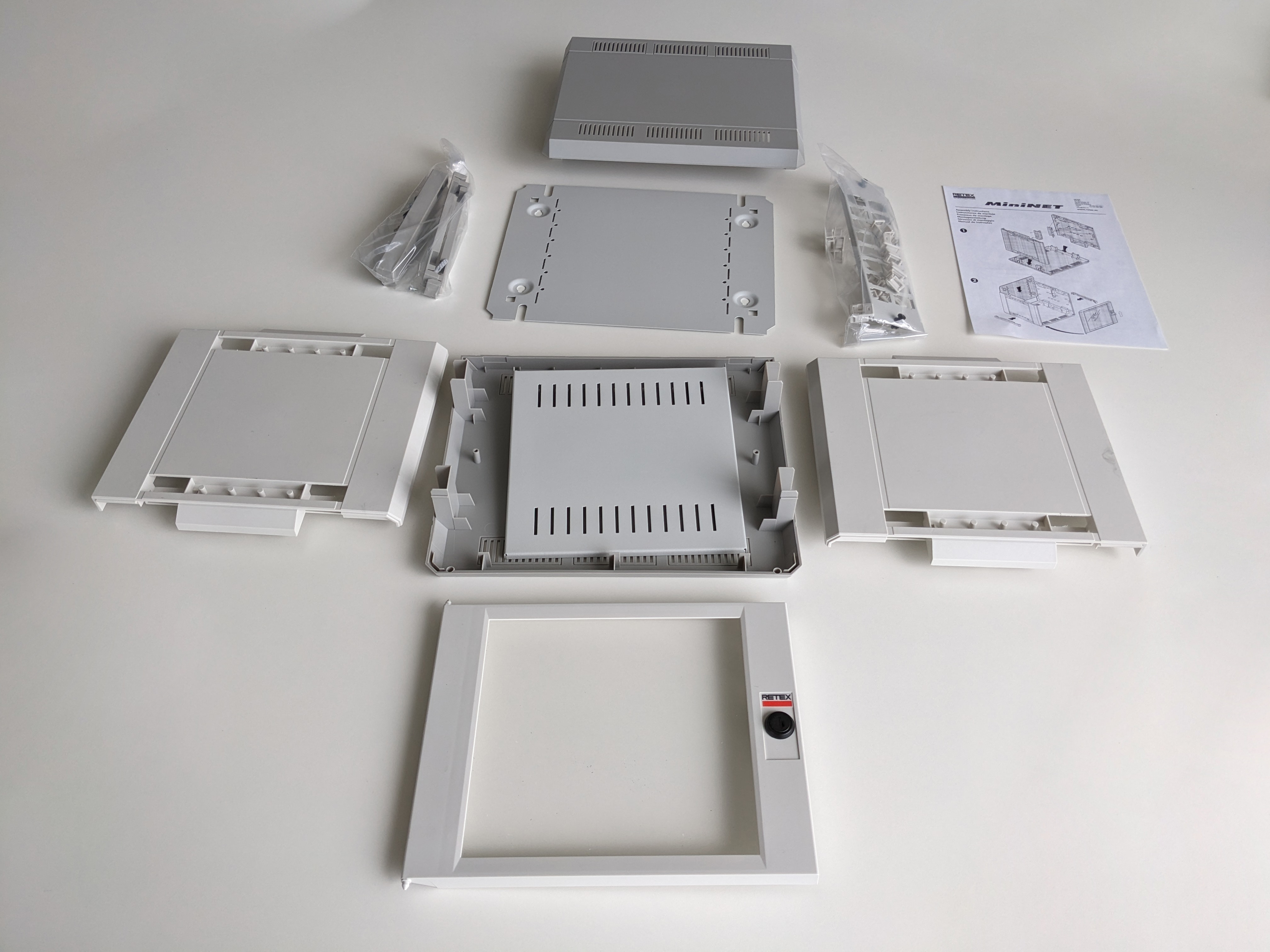

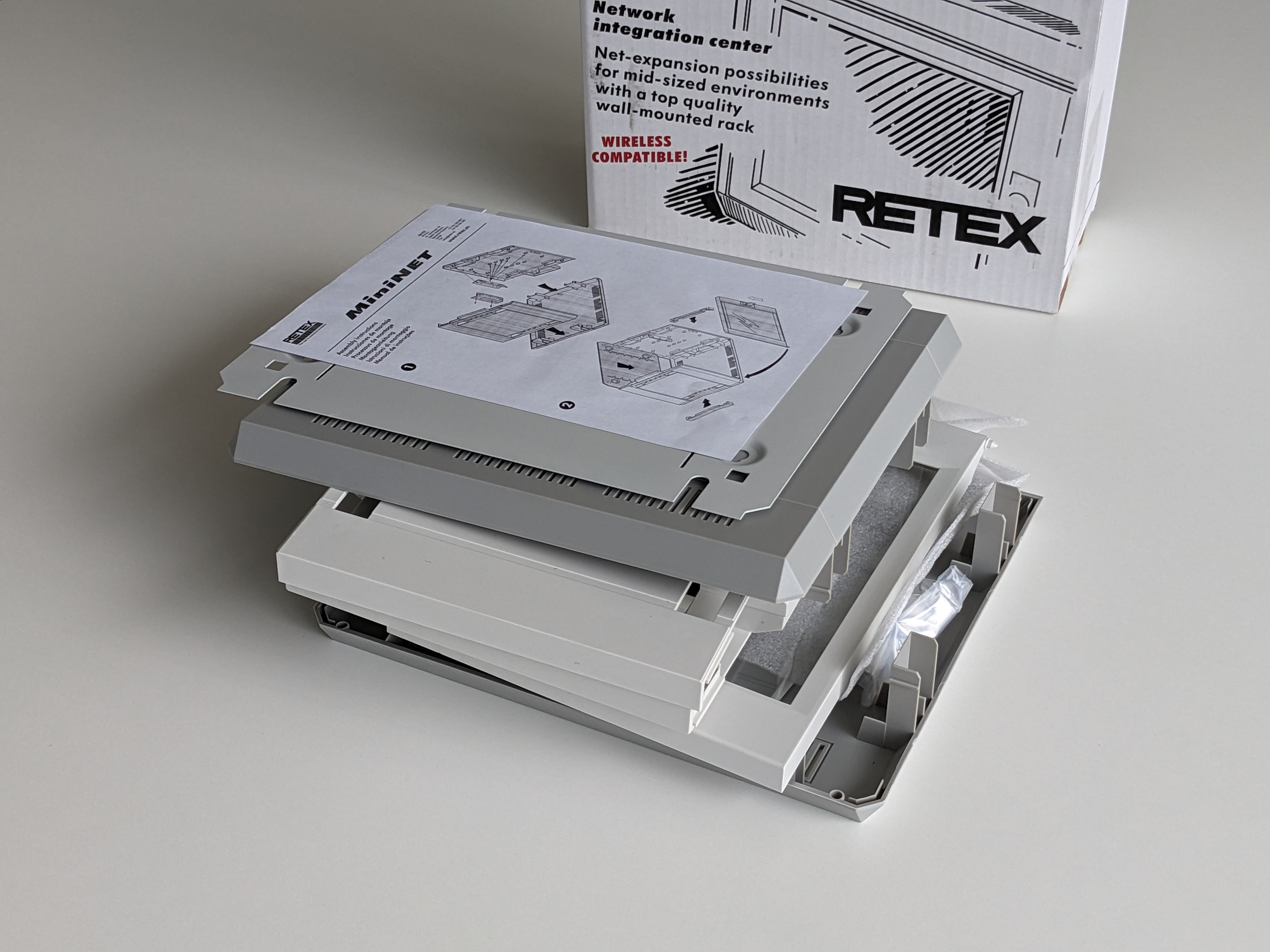

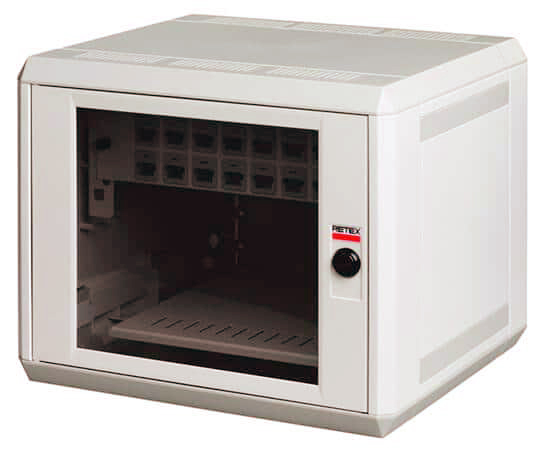

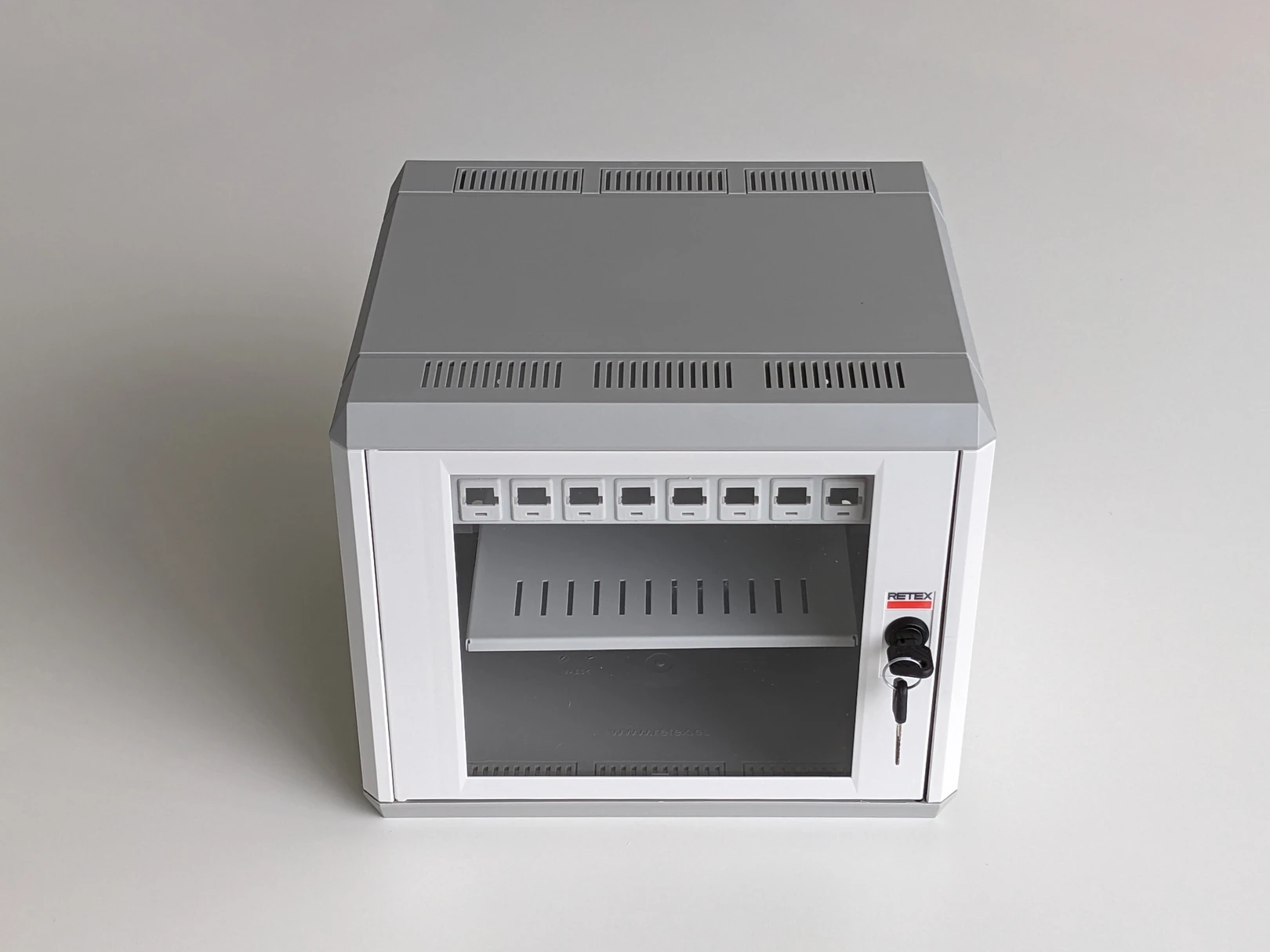

MiniNET wall rack was conceived for small household and SOHO (Small Office, Home Office) installations. Offers quick and easy assembly, without bolts or tools, thanks to four practicable lateral stoppers. Delivered Flat-pack.

MAIN ADVANTAGES
  • Its special design and thermoplastic construction are perfectly adapted to such diverse surroundings as stores, bank branch offices, industrial settings, etc. This is the ideal choice for any small voice/data, DSL telephony, Internet or video conferencing installation, with the additional benefit of its compatibility with Wireless technology
  • Door with built-in hinge, which allows the door’s direction of rotation to be reversed during assembly without using tools

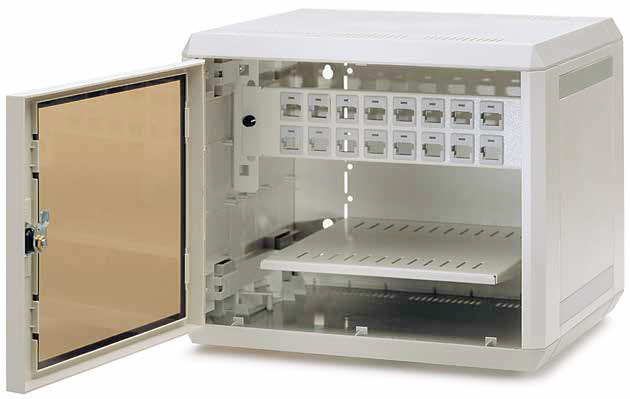

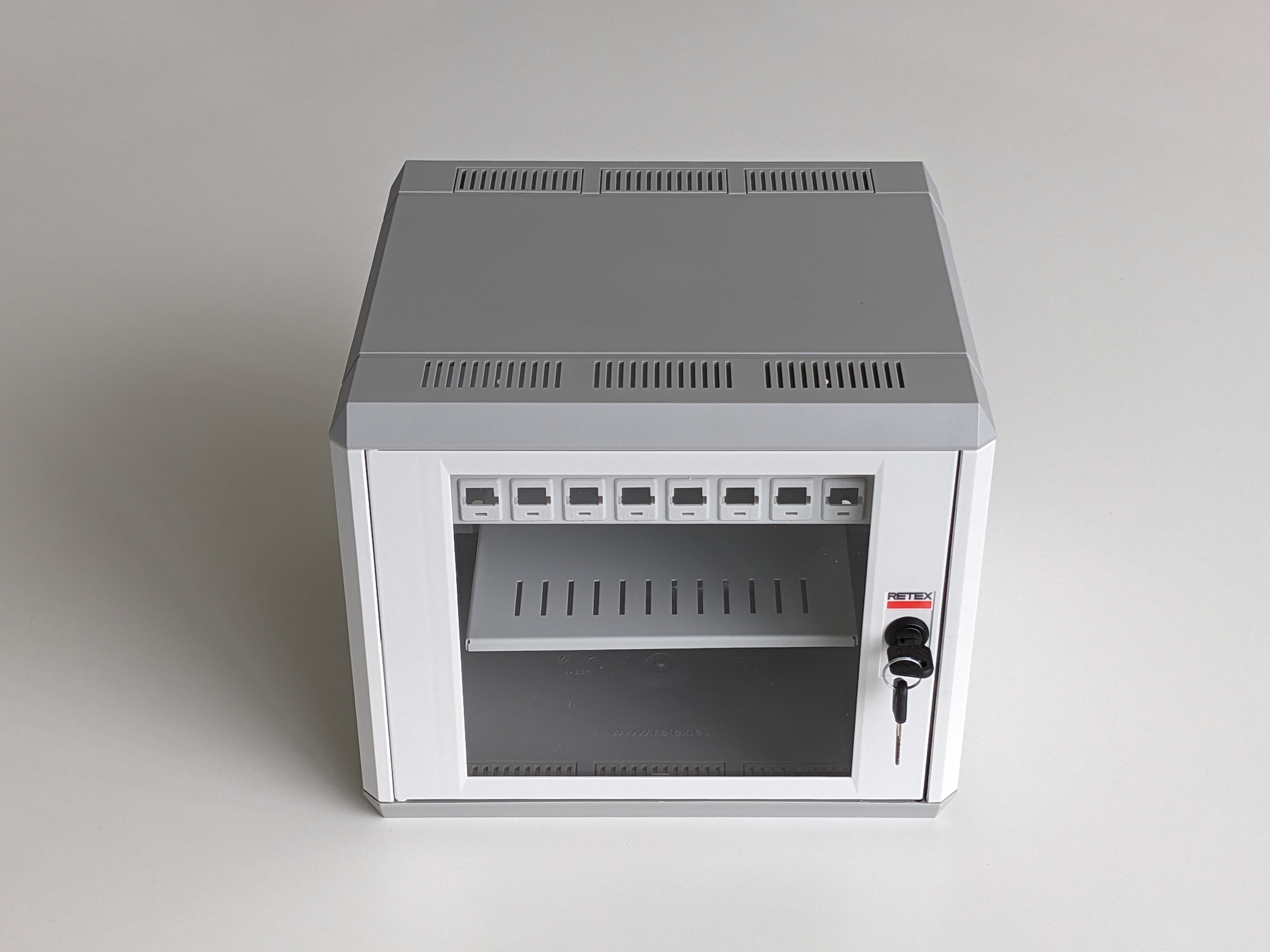

  • Transparent bronze-coloured window for supervising the equipment. Security lock with key
  • Upper/lower bodies and lateral cover panels in heat-resistant thermoplastic ABS
  • Standard ventilation in the upper/lower bodies allows optimum circulation of air (total ventilated area = 90 cm2)
  • Pre-machined and practicable rear ventilation slots which allow the wiring to be managed easily
  • Internal sections adjustable for depth
  • Rear cover panel with anchor points to wall
  • Electronic support tray with bolt-free attachments, adjustable for height
  • Quick-assembly patch-panel
  • New design of jack anchoring frames makes the unit compatible with the assembly of Keystone and Systimax connectors
  • Structured manufactured in heat-resistant ABS (90 ºC), and top cover panel, tray, locking sections and patch-panel in 1 mm thick sheet steel, finished in epoxy paint
  • Color: sides, door frame and internal accessories in a color similar to RAL 9002, top and bottom cover panels and side stoppers similar to RAL 7044.

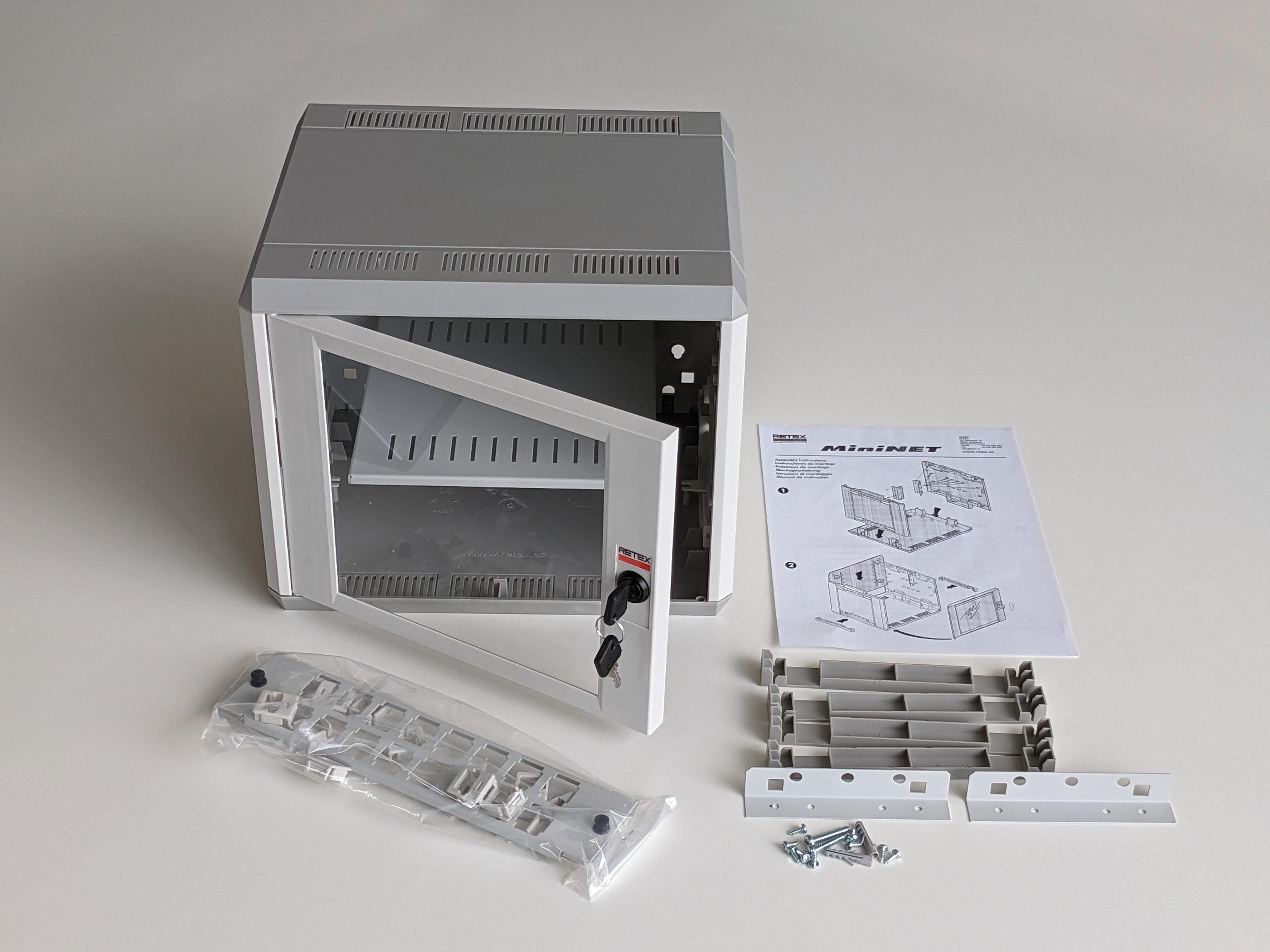

Standard configuration: 1 MININET, 1 pair of variable-depth sections, height-variable tray, patch-panel with 16 RJ45 ports, 16 jack attachment frames, upper and lower ventilation useful for wiring output

Code Box dimensions (mm) External dimensions in package (mm) Gross weight (kg)
  H W D H W D
RE-32240010 272 332 282 139 344 365 2
