Basic PDUs

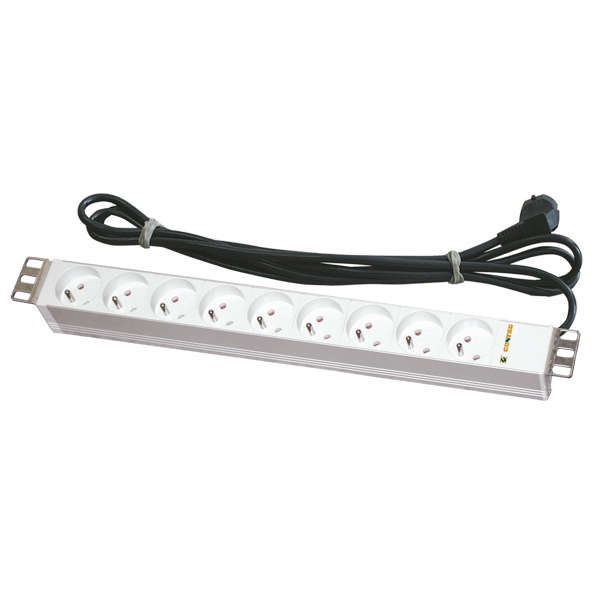

The basic power distribution panels are used for power supply and its distribution to individual IT equipment in the racks.

The basic power units (PDUs) are used for power supply and its distribution to individual IT equipment in the racks.

Basic PDUs can be installed into the rack either horizontally on 19" and 10" extrusions or vertically. For vertical installations, a universal bracket needs to be ordered separately (code DP-RP-VM-12).

test test

Output types Max. load
UTE 16A, 250V
SCHUKO 16A, 250V
UK 13 A, 250 V
IEC320 C13 10 A, 250 V
IEC320 C19 16A, 250V
(other types possible on request)



Parametr Value
Material unit Anodized aluminum with a protective layer against oxidation, PA6 plastic
Material mounting brackets Sheet steel
Dimensions Length: predefined by type, or can be adjusted for the configurationof choice
Height: 44 mm
Depth: 48 nebo 50 mm
Connection 1-phase 230 V AC or 3-phase230/400 V AC, 16 A or 32 A
Package includes Power distribution unit with non-detachable 3 m power cable with plug
Mounting brackets for horizontal installation
Datasheet

PDU_datasheet_EN_20210901.pdf

File size: 1871 kB

Other versions CZ ru fr


File size: 80 kB



File size: 98 kB



File size: 87 kB



File size: 793 kB



File size: 962 kB



File size: 63 kB



File size: 57 kB



File size: 87 kB



File size: 123 kB



File size: 138 kB

Catalog

Product Catalog—Data and Telecommunication Solutions and Racks

File size: 24466 kB

Brochure

Brochure—Power Distribution Units (PDU) Managed, Monitored and Basic

File size: 1568 kB

Brochure

Brochure—Complete Solutions for Datacenters

File size: 3003 kB

Brochure

Brochure—Solutions for Server Rooms and Cabling Installations

File size: 1210 kB

Accessories

Inline Meter

The 1-phase or 3-phase inline power meter with an illuminated display is designed for measuring parameters on the lead-in cable to basic PDUs and is easy to connect into existing circuits.

Show

Temperature & Humidity Sensor

The sensor reads temperature and humidity inside the IT rack. It connects via a 2.5 m cable directly to a monitored or managed PDU.

Show

Output Power Cables

Output power cables are used for transmitting electrical energy between the PDU and an IT device inside the IT rack.

Show

Input Power Cables

1-phase 16 A monitored and managed PDUs are supplied without a lead-in cable.

Show

Locking Inserts

Retention sleeves reduce the risk of accidental unplugging of the power cable.

Show

Brackets for vertical installation of PDU

For vertical installation of a power distribution unit into IT rack, it is necessary to order the appropriate bracket for basic, monitored and managed PDUs, which is not included in the package.

Show
