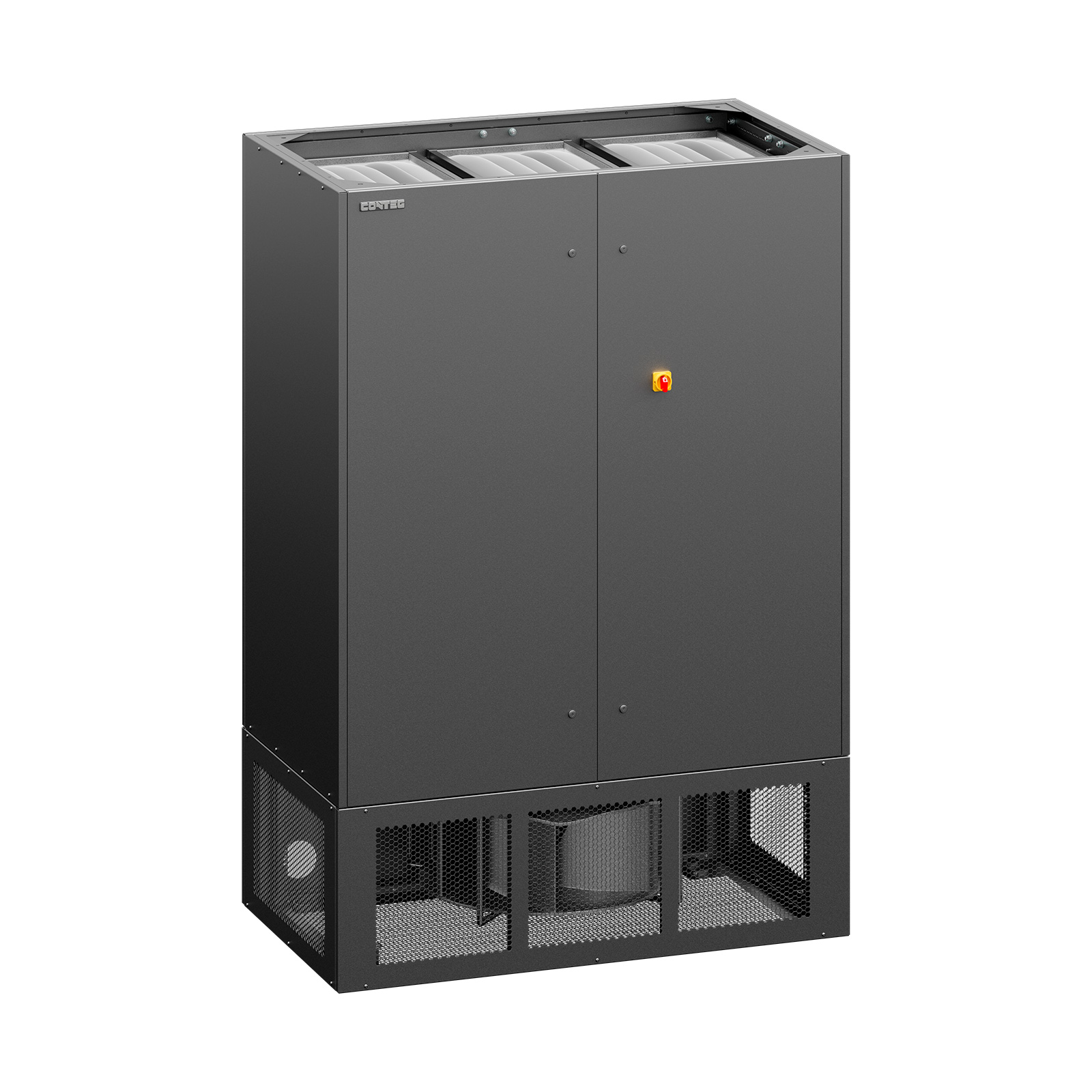

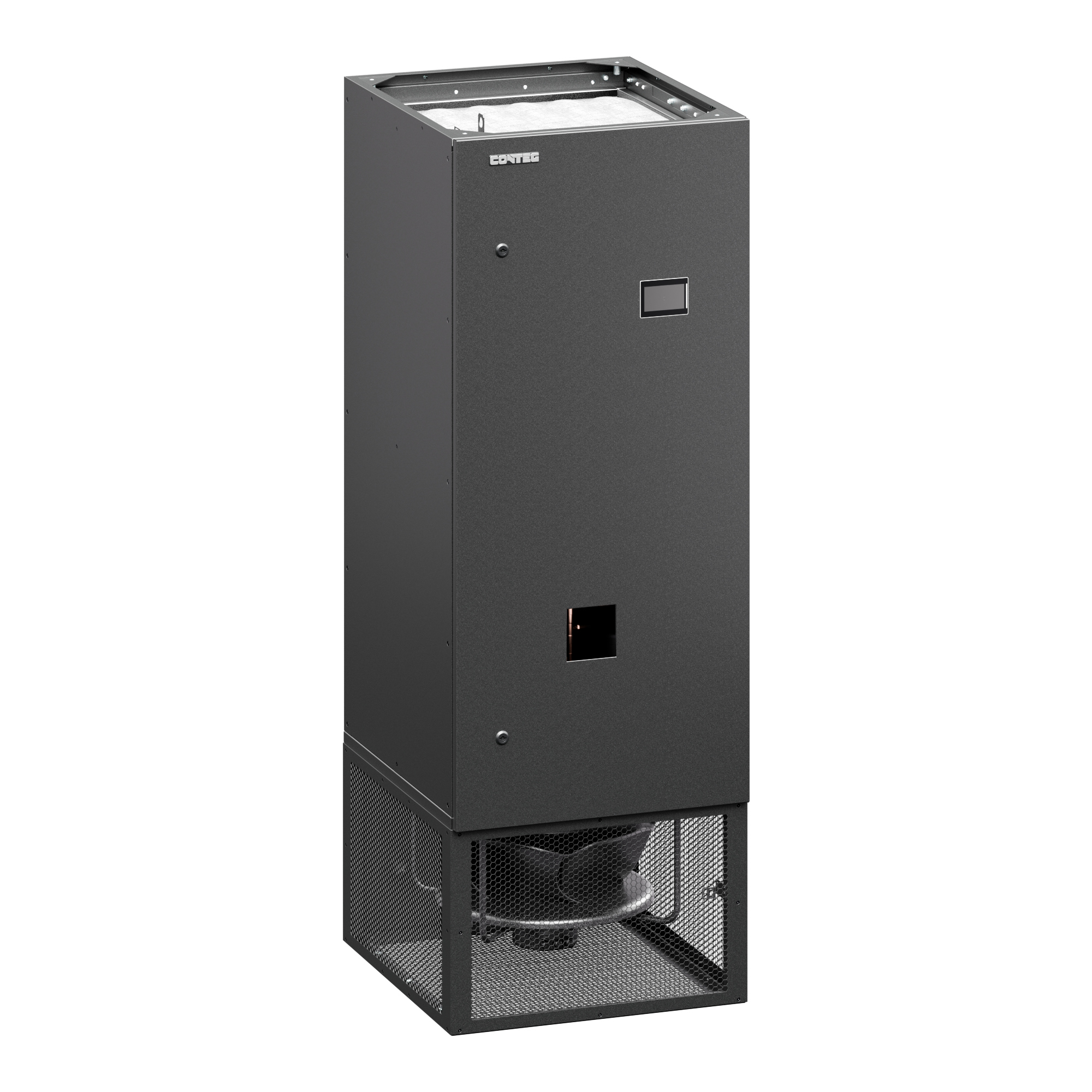

CoolRAC CW
New design
Water cooled room cooling units are designed to be connected to any system with a cold water source.
Product introduction

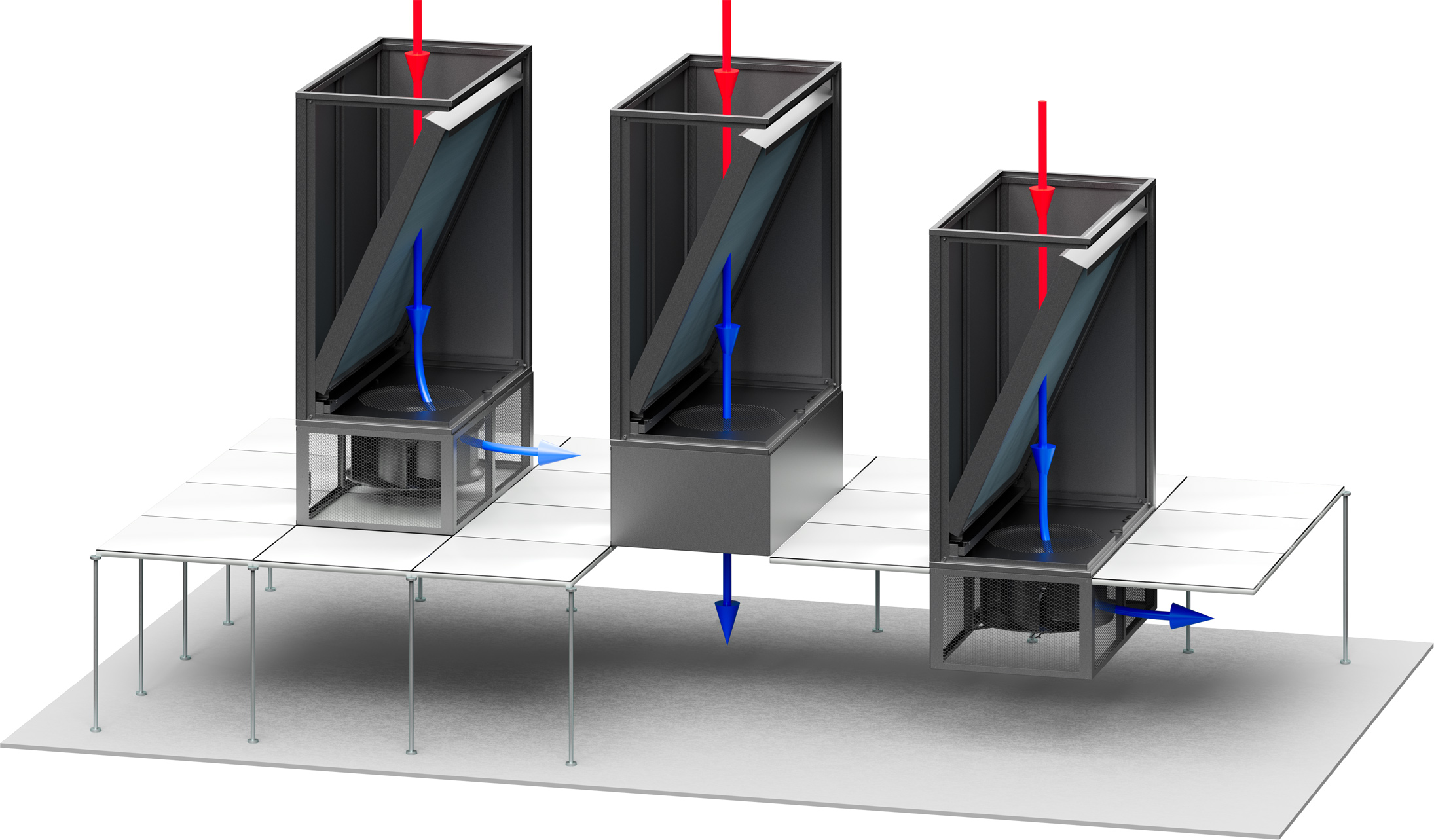

A range of indoor Room-Cooling Units. Variable fan module installation allows for air outlets above the floor, in a raised floor, or on ductwork. CoolRAC units can be equipped with numerous additional accessories and fitted with one or two powerful radial EC fans for increased redundancy.Key benefits of the product
- Cooling capacity up to 104 kW
- Possibility to choose any type of chiller (water cooler) depending on the requirements of the environment
- Free-cooling system saves significant amount of power
- Virtually unlimited number of indoor units per hydraulic circuit
- Variable chiller types fulfill any requirements (outdoor noise level, extreme ambient temperatures, etc.)
- A wide range of different water temperatures and glycol mixtures can be used
Information
Key features
| Product line name |
CoolRAC CW |
|---|---|
| Power (V/Ph/Hz) |
400/3/50-60 |
| Height (mm) |
2 025
|
| Weight (kg) |
200, 210, 290, 295 |
| Width (mm) |
714, 1 353
|
| Depth (mm) |
763
|
| Ideal for |
|
| Internal unit |
AC-CRCW-00S-04, AC-CRCW-00S-06, AC-CRCW-00M-08, AC-CRCW-00M-10 |
| Color design |
RAL 9005, RAL 7035 |
| Externally connected unit |
Chilled water system (Chiller) |
| Maximum current (A) |
3,2, 4,5 |
| Nominal cooling capacity |
46, 59, 87, 104 |
| Nominal net cooling capacity (kW) |
45, 58, 85, 102 |
| Operating current (A) |
2,2, 3,5 |
| Architecture |
Variable air outlet fan module installation options:
|
| Fan drive technology |
EC |
| Maximum air flow (m3/h) |
10 460, 10 300, 16 026, 15 564 |
| Number of fans |
1, 2 |
| Refrigerant type |
Chilled water |
| Filter class |
G4 |
| Input pipe diameter and type |
5/4" female thread, 6/4" female thread |
| Output pipe diameter and type |
5/4" female thread, 6/4" female thread |
