CoolRAC XC
New design

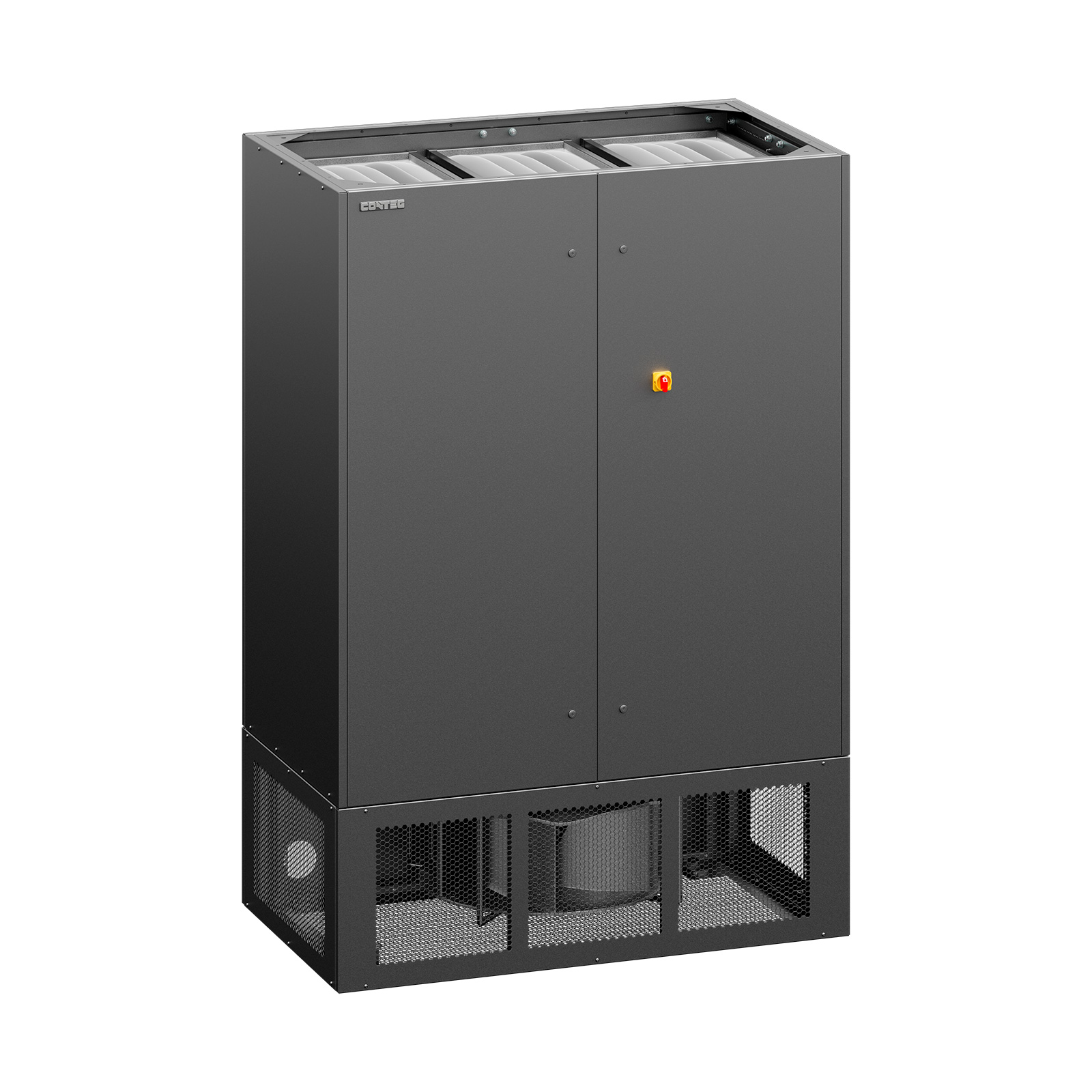

Room cooling units based on the direct expansion principle. A compressor is integrated into the indoor unit, which is connected to its outdoor condenser.
Product introduction

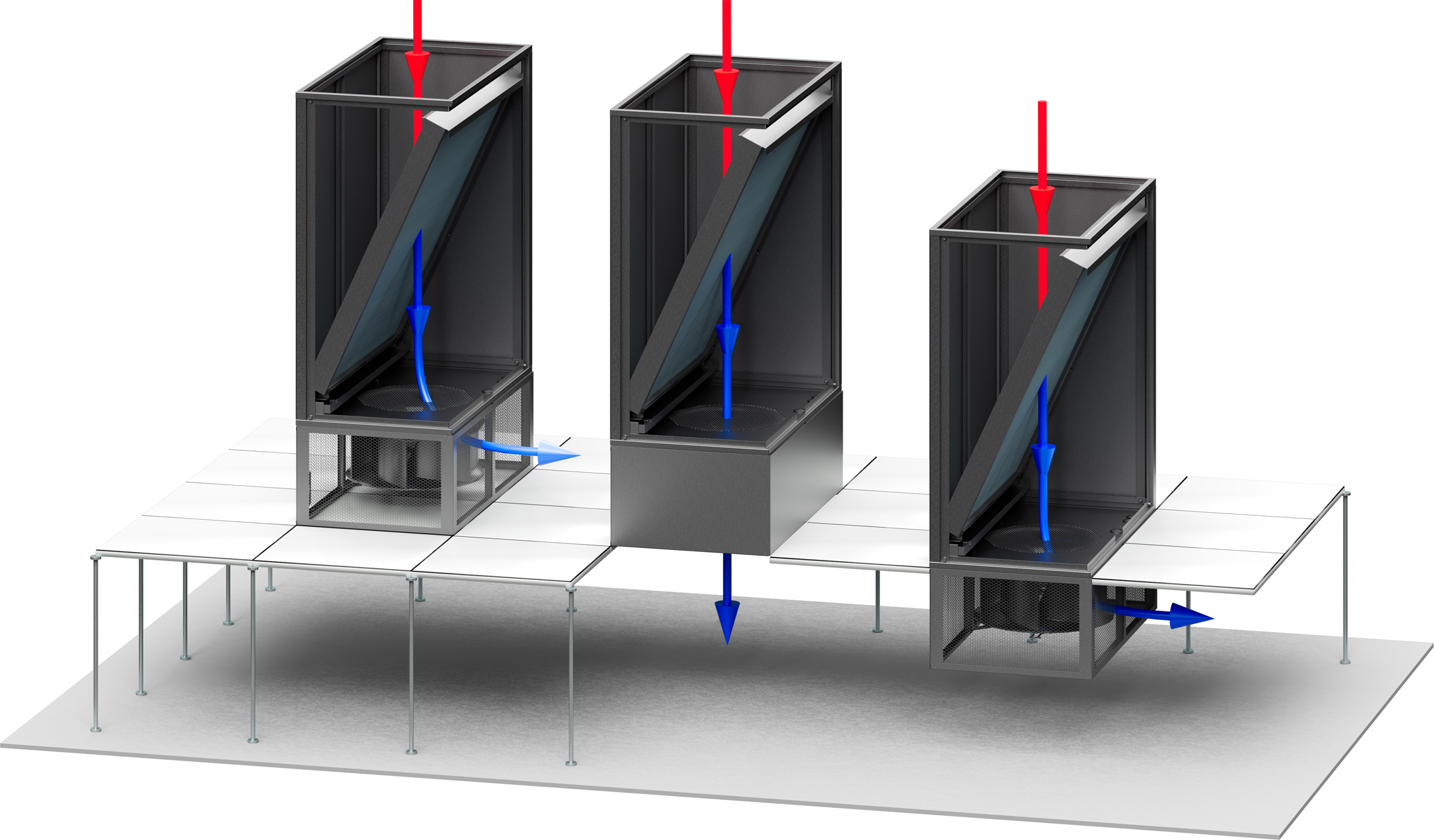

A range of indoor Room-Cooling Units. Variable fan module installation allows for air outlets above the floor, in a raised floor, or on ductwork. CoolRAC units can be equipped with numerous additional accessories and fitted with one or two powerful radial EC fans for increased redundancy.Key benefits of the product
- Cooling capacity up to 46 kW
- Operating temperature range -40 °C up to +55 °C
- Remarkable energy efficiency and stepless cooling capacity control
- No water in data center
- Compressor safely positioned inside the data center
- Low level of outdoor unit's noise
- R410A refrigerant
Information
Key features
| Product line name |
CoolRAC XC |
|---|---|
| Height (mm) |
2 025
|
| Weight (kg) |
290, 330 |
| Width (mm) |
714, 1 353
|
| Depth (mm) |
763
|
| Ideal for |
|
| Internal unit |
AC-CRXC-00S, AC-CRXC-00M |
| Color design |
RAL 9005, RAL 7035 |
| Externally connected unit |
AC-COND2-03-35, AC-COND2-02-45, AC-COND2-03-55 |
| Quotes |
The CoolRAC series includes a precision cooling units specially designed for easy integration into new as well as renovated data centers. These air conditioning units - with different cooling principles, dimensions, and performance - remain the most popular system for effective targeted cooling from smaller server rooms to large data centers. |
| Nominal cooling capacity |
25, 46 |
| Cooling system |
Direct expansion |
| Nominal net cooling capacity (kW) |
23, 45 |
| Architecture |
Variable air outlet fan module installation options:
|
| Fan drive technology |
EC |
| Number of fans |
1, 2 |
| Refrigerant type |
R410A |
| Filter class |
G4 |
