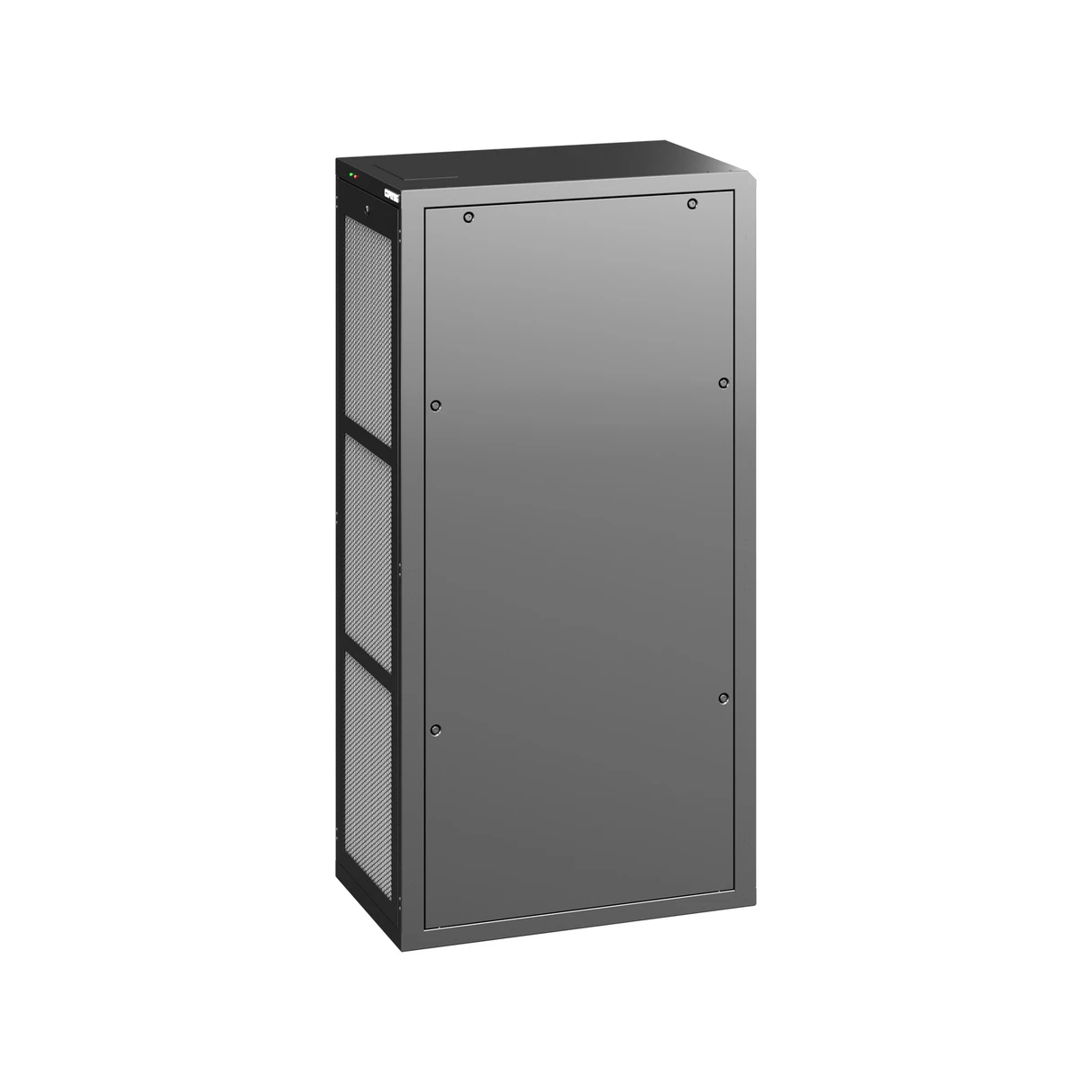

CoolTeg Plus CW

CoolTeg CW units are suitable for cooling systems with a chilled water source. They can be used with free-cooling systems. The new generation is equipped with EC fans and a touch display.

Units are connected to the chilled water distribution system in the data centers. This may be a modular cooling system with unlimited capacity. Everything depends on the proper design and implementation of the piping, pumps, and chillers. In our CoolTeg Plus air-conditioning units we use a combination of the newest technologies and precision controls based on our experience and feedback from data centers around the world. Since fans, heat exchangers and control parts are becoming more advanced, we have modified our products to make sure our clients get the best and latest features. We started producing a new generation of CoolTeg Plus units with energy-efficient fans that use EC technology as well as high-efficiency copper-aluminum heat exchangers. We can now measure the humidity and temperature in both the cold and hot zones. The unit's air intake and blowing areas were also enlarged to ensure perfect air distribution. The main difference is most noticeable in the unit's control part. We are now using an absolutely new controller with advanced Conteg software as well as a new 4.3” graphic touchscreen resistive display with 65,000 colors that correspond with the latest technology. One display can be used for all CoolTeg units in one data room – up to 30 units with a maximum distance of 500m. Communication through TCP/IP protocol and the integrated web server is standard, and remote control from any computer connected to the Internet is simple manageable. CoolTeg Plus is a basic part of Conteg's new generation of Targeted Cooling solutions for all projects in modern data centers.

The temperature of the chilled water may be from +4 ° C to virtually unlimited levels. Lower water temperature will improve the cooling performance of CoolTeg units. Higher water temperatures can significantly reduce the cooling system's overall energy consumption. Each unit's cooling capacity can be changed by the position of a three-way valve. Changes in the fan speed can help attain a constant temperature distribution in cold and hot zones in a data center's cold and hot zones. When it is necessary to reduce the relative humidity to the setpoint, the unit automatically responds by decreasing the flow of air and opening the water valve. CoolTeg CW units provide you with top-quality performance, while at the same time reducing your annual energy consumption levels better than any other air conditioning unit on the market today. CoolTeg Plus CW units are suitable for cooling systems with free cooling. If you use them in conjunction with EC technology fans, you will be able to further reduce your annual energy consumption.

MAIN ADVANTAGES:

  • Unlimited number of units connectible to any single water system
  • A Free-cooling system conserves ample amounts of energy
  • Variable chiller types fulfill any requirements (outdoor noise level, extreme ambient temperatures, etc.)
  • Water temperatures are variable during the year, conserving energy while controlling humidity levels
  • Maintains water temperature between 6 °C and 30 °C





Parameter Value
CoolTeg Plus

Unit depth 1000 mm or 1200 mm, height from 42U (1978 mm) to 48U (2245 mm)

Airflow max. 4000 m3/h

Radial fans with high-efficiency EC motors

The regulation element is a standard 3-way valve (or a 2-way valve is available upon request)

Communication via 4.3” color touchscreen display or through digital I/O connectors.

Display with an integrated web server can control up to 30 units in a group (up to 4 zones) with advanced functions (standby unit, overload start, etc.)

TCP/IP is standard and other protocols (Bacnet, Modbus, etc.) are available upon request.

Software upload and data download via USB flash memory disk.

CW30 size

Unit width 300 mm

Cooling capacity 36 kW (temperature of return air is 45°C, and temperature of chilled water is 6/12°C and SHR=100%)

Airflow 4000 m3/h

One-phase power supply 230V/50Hz

Power consumption 770 W at nominal fan speed (250 W at reduced capacity; 25 kW and 2500 m3/h airflow)

CW60 size

Unit width 600 mm

Cooling capacity 85 kW (temperature of return air is 45°C and temperature of chilled water is 6/12°C and SHR=100%)

Airflow 10500 m3/h

Three-phase power supply 3x400V/50Hz

Power consumption 2900 W at nominal fan speed (970 W at reduced capacity; 50 kW and 5500 m3/h airflow)
