Above-rack units

CoolTop DX

Space saving

Cooling units with direct evaporation for precise air conditioning that do not take up any space. They offer advanced cooling performance management and install directly on IT cabinets.

Added to the order

CoolTop DX
Go to the order
To add a product to your order, you need to sign in/register
Where to buy?

Product introduction

CoolTop DX cooling units are designed for easy installation above IT cabinets, so they are ideal for effective targeted cooling of server rooms and large data centers.

CoolTop DX indoor units are connected to outdoor condensing units by means of a refrigerant pipe. The CoolTop DX unit includes a special exchanger with two separate refrigerant circuits.

In basic mode, one 19 kW or 24 kW outdoor unit can be connected to each CoolTop unit. If higher cooling capacity is required, a second outdoor cooling unit may be connected to increase the cooling capacity to up to 38 kW or 48 kW.

CoolTop is a solution that is not only economical, but also effective, serving to immediately increase the cooling performance without the need for structural modifications. CoolTop cooling units are suitable for closed cold aisle and closed hot aisle and can also be combined with CoolTeg units in the same zone/aisle.

Key benefits of the product

  • Take no floor space
  • No water in the data center
  • Delivers cold air directly into the cold aisle in front of the server cabinets
  • Vertical air circulation circuit responding to local conditions
  • Extremely low power consumption thanks to a large heat exchanger and axial EC fans
  • Modern user-friendly control system
  • Flexibility in arrangement of the elements
  • A double floor is not needed for air distribution Installs easily in a closed hot or cold aisle
  • Perfect compatibility with CONTEG IT cabinets
  • Comes with a wide range of accessories
  • Double-circuit refrigerant exchanger
  • Cooling power regulation from 30% to 100%
  • Option to connect to 2 outdoor units
  • Wide range of accessories
  • Double stainless steel condensate pan located below the heat exchanger
  • Controller with ModBus communication (no accessories required)
Information Video For download
To add a product to your order, you need to sign in/register

Information

Key features

Product line name

CoolTop DX

Power

230/1/50 V/f/Hz

Architecture

Open

Fan drive technology

EC

Note

Control panel – a user-friendly graphical environment and intuitive control make the AC-DISP-PGDX-xx service terminal a powerful tool to control CoolTop units. The touch screen can be installed on the door of the CoolTop unit, on the wall or on the side panel of the cabinet.

Cooling system

R410A

For download

Product Catalog: Data and Telecommunication Solutions and Racks

Product Catalog: Data and Telecommunication Solutions and Racks

Catalogs and brochures
File size: 54.04 MB
Uploaded: 11. 2. 2025
Download file: en
Language versions:
Brochure Cooling Units for IT

Brochure Cooling Units for IT

Catalogs and brochures
File size: 4.7 MB
Uploaded: 11. 2. 2025
Download file: en
Language versions:
Datasheet: CoolTop DX

Datasheet: CoolTop DX

Datasheet
File size: 4.1 MB
Uploaded: 11. 2. 2025
Download file: en
Language versions:
CoolTop-DX_main

CoolTop-DX_main

Images
File size: 358.02 kB
Uploaded: 11. 2. 2025

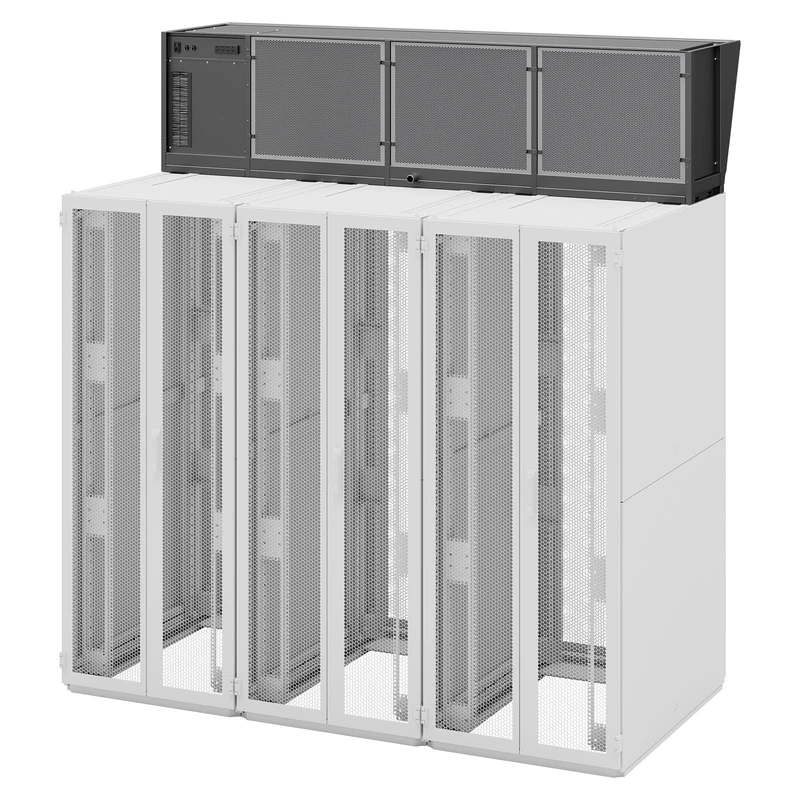

CoolTop-back-3xRF1

CoolTop-back-3xRF1

Images
File size: 504.75 kB
Uploaded: 11. 2. 2025

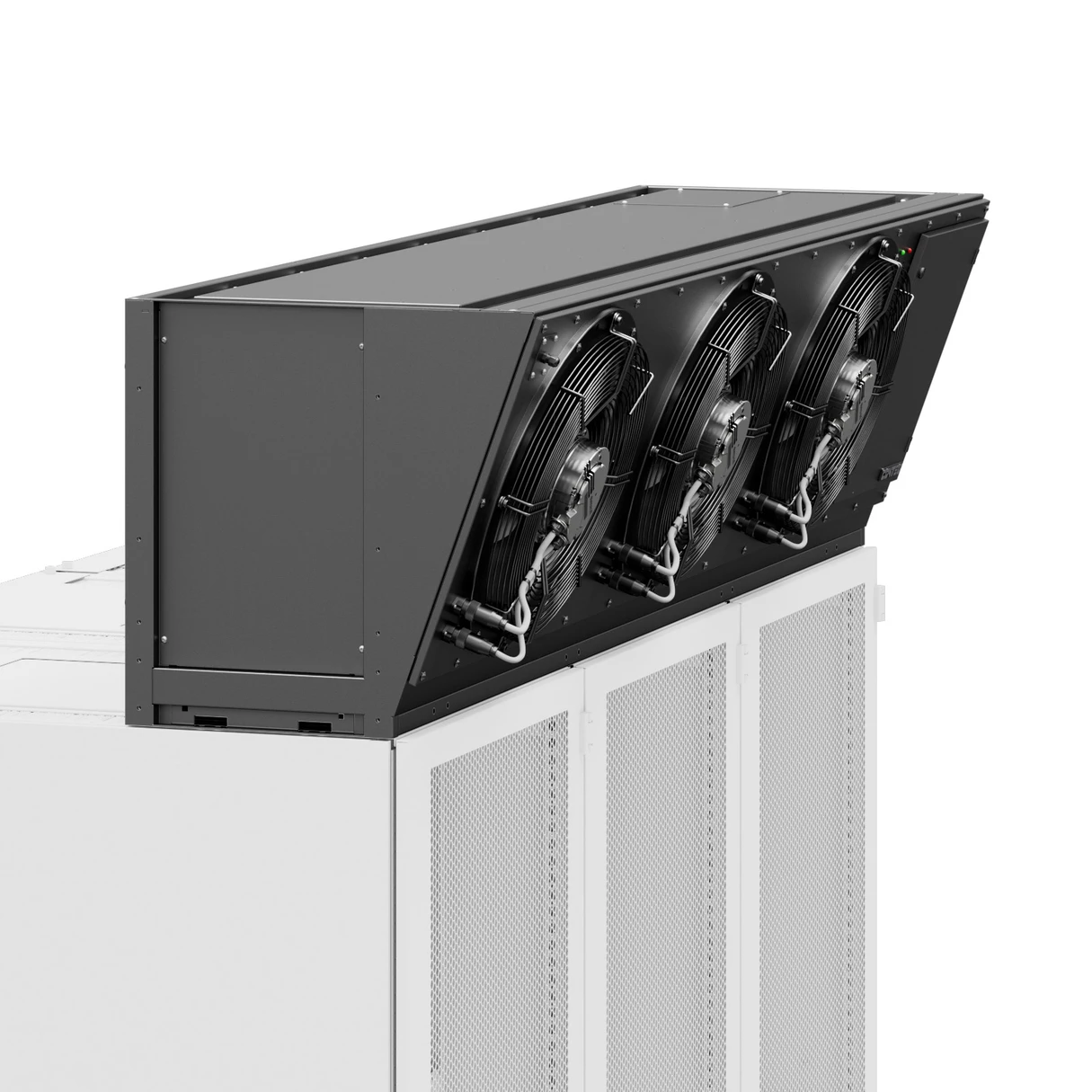

CoolTop-side-crop-on-3xRF1-tm
