RAMOS Plus

Electronic handle with card reader

including the door contact, enables direct connection to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit.

Added to the order

Electronic handle with card reader
Go to the order
To add a product to your order, you need to sign in/register
Where to buy?

Product introduction

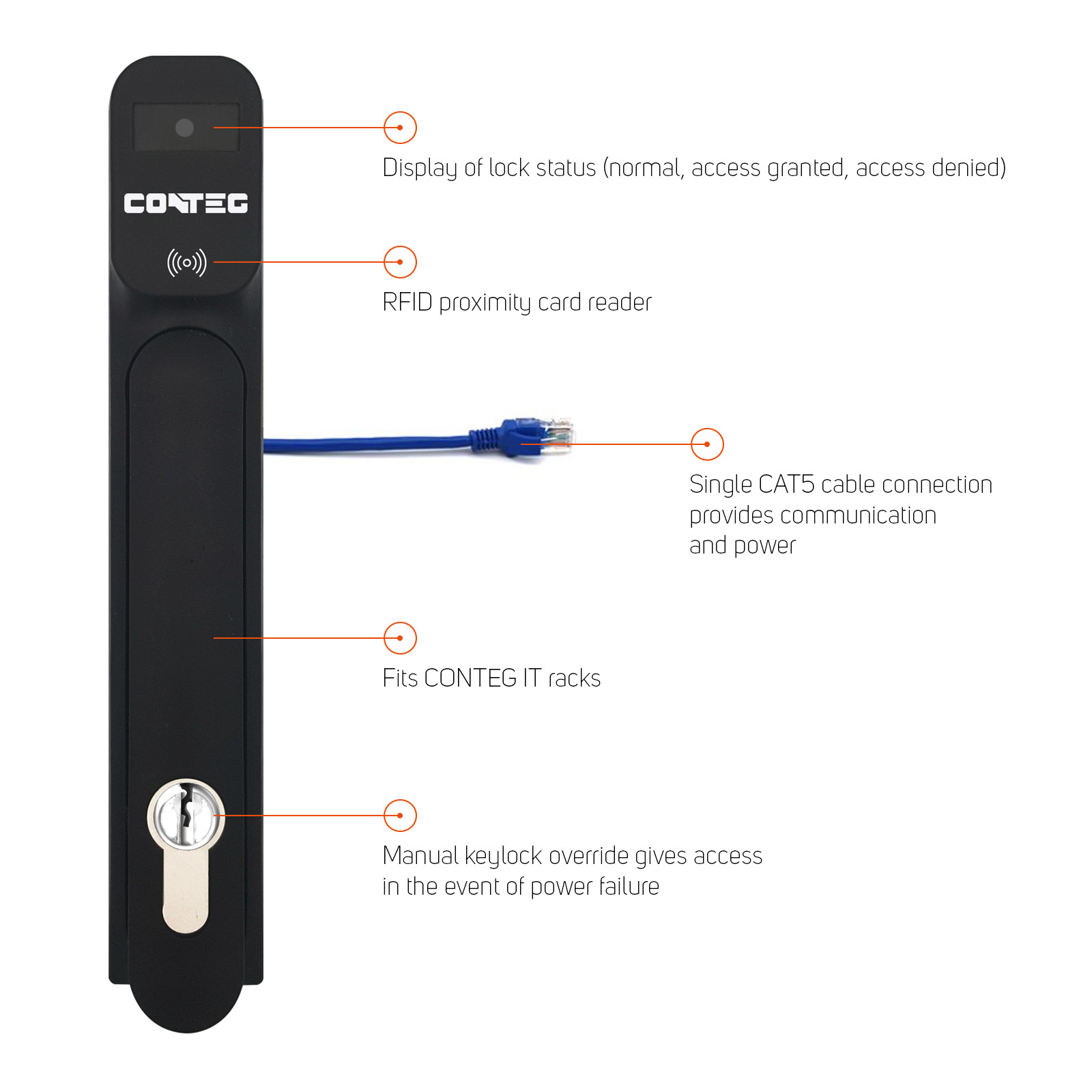

The electronic handle with a built-in reader including a door contact enables connection directly to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit. This handle is intended for CONTEG cabinets with a 25x150mm handle cut-out. It is possible to control up to 8 handles with RAMOS Optimax and up to 4 handles with RAMOS Plus without the need for additional hardware.

The electronic handle is also compatible with doors equipped with a multi-point locking mechanism. 2 EM cards are included with each handle.



Order code: RMS-ACS-EL1

Information For download
To add a product to your order, you need to sign in/register

Information

Key features

Product line name

Electronic handle with card reader

Power

Powered by RAMOS Optimax or RAMOS Plus smart port (main monitoring unit only)

Included in the package

2 EM cards

Operating temperature

from -25 °C to +75 °C

Operating humidity

10% - 90%

LED Indikátor

Color RGB LED

Vhodné pro

RAMOS Plus and RAMOS Optimax

Podporovane karty

EM cards with a frequency of 125kHz 26bit, K4100/EM4100/EM4200/T5577

Čteci dosah

0-3 cm

Otevírání zámku

Remote opening and closing from the main monitoring unit via web interface, SNMP and CONTEG Pro Server application

Napětí

5V DC

Spotřeba

Standard 0.35 mW, 70 A in operation up to 1.75 W, 3500 mW
