iSEVEN Flex SERVER

This rack configuration fulfills most demand and brings an unattainable price/performance ratio making it ideal for day-to-day use.

After thorough research, we have prepared the most requested rack configuration for server rooms and projects called iSEVEN Flex SERVER. This rack configuration fulfills most demand and brings an unattainable price / performance ratio making it ideal for day-to-day use of the product where a load rating of up to 1000 kg is required, regardless if using a welded or mounted frame design. Good airflow is required for server placement, and the racks are equipped with super-perforated doors with Unmatched 86% perforation.

MAIN ADVANTAGES:

  • Server rack for standard IT hardware up to 1000 kg
  • Unmatched 86% door perforation ratio decreases server fan power consumption
  • Unassembled version for transport to unaccessible spaces

Parameter Value
Height 42U
Width 600, 800 mm
Depth 1 000 mm
Load rating 1000 kg
19" vertical extrusions A-type extrusions, non-divided (600 or 800 mm wide) extrusions without horizontal holders; (for 800 mm provide additional 24U of installation space, adjustable from inside, blank panels not included
Front door Vented door—86% perforation rate, swivel handle lock—DIN profile, single-point lock, universal key 333
Rear door Vented door—86% perforation rate, swivel handle lock—DIN profile, single-point lock, universal key 333
Side panels Two side panels, standard lock, universal key
Breakout holes—cable entry

Universal size 300 × 100 mm—back of the upper and lower cover

Universal openings can be covered with blanking panels (ordered separately)

Extended dimension 500 × 115 mm—only 800 mm wide—both sides of the top and bottom cover. It consists of 3 parts: 300×115 mm and 2× 100×115 mm, each part can be opened separately

Extended openings can be covered with a blanking panel or a standard cable brush—middle opening. The hole can be protected with a rubber edge (DP-KP-LEM-6) or a brush (DP-KP-KAR-6)

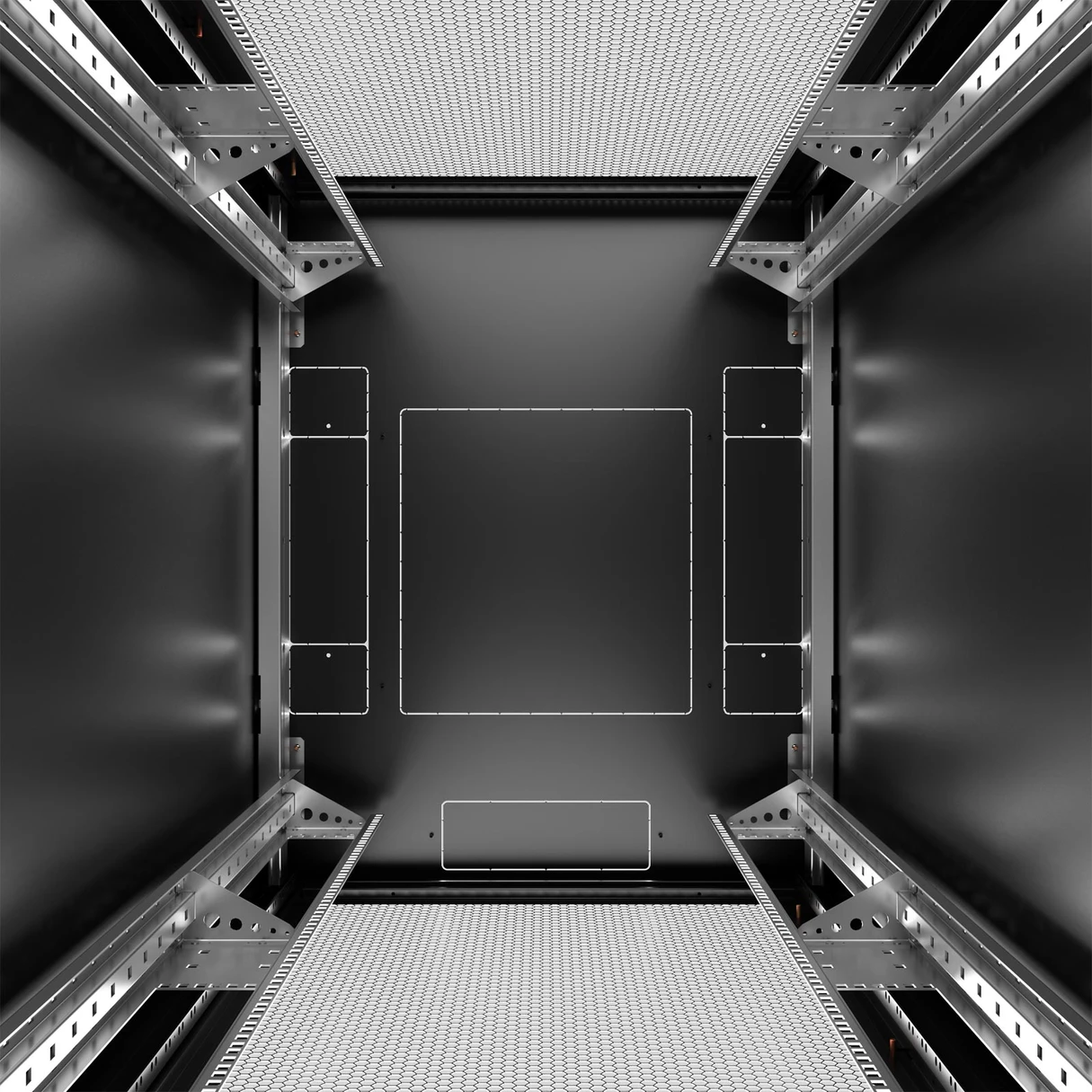

Breakout holes—ventilation unit installation

Standard size 420 × 440 mm

Available in top and bottom cover

Can be covered with blanking panels (ordered separately)

Note Adjustable feet holders
