Free-standing racks

OPTIMAL Cable Management

For interconnection patch panels

The OPTIMAL cable management board is suitable for interconnection patch panels for metallic or optical cabling. Typical use cases include cross-connect point solutions or Fiber-to-desk solutions.

Added to the order

OPTIMAL Cable Management
Go to the order
To add a product to your order, you need to sign in/register
Where to buy?

Product introduction

The OPTIMAL cable management cabinet is designed to support configuration with horizontal links or consolidation point topology according to ISO/IEC 11 801, TIA-942 and TIA-568 B standards. This solution is recommended for telecommunication rooms where active components and connection panels need to be separated.

Key benefits of the product

  • A unique system for high-density cable routing or a consolidation point
  • Flexible arrangement of internal components
Information For download
To add a product to your order, you need to sign in/register

Information

Key features

Product line name

OPTIMAL cable management

Height (U)
42, 45
Depth (mm)
300, 400
Width (mm)
900
Load capacity (kg)

400

Front door

Metal front door, vertically split; multi-point lock with DIN insert

Side panels

Side and back panels with lock

Popis

Free standing, anchoring to the wall recommended (screw holes ready); optionally, two cabinets can be connected back to back

Adjustable placement of 19"" structures – front to back and left, center or left

Pair of cable management brackets, placement in combination with 19"" rails

The cable management brackets can be equipped with binding accessories: Cable organization reel - HDWM-FSS-50 (4 pcs included), HDWM-FSS-100o Plastic eyelets, VO-xxxo Metal eyelets - VO-Wx-xx/xx

The top and bottom covers have cable inlets covered by metal and plastic covers.

The total usable depth of the installed equipment is 264 mm

If the 19"" rails are in the front position, the following applies: The usable depth to the back is 254 mm (for 300 mm); and 354 mm (for 400 mm deep ROF-CS); depth may vary depending on the type of cable management accessory used

The usable front space is limited by the multi-point lock and may be from 10 to 15 mm (depending on the specific installation position)

IP rating

Max. IP30

Rozšíření

Cable management expansion cabinet:
Height: 42 or 45 U

Length: 300 mm

Width: 300 or 400 mm

IP rating: max IP30

Load: 200 kg

Main cable management cabinet can be expanded

Expandable space for patch cord cable management

The cable management bracket can be equipped with binding accessories: Cable organization reel - HDWM-FSS-50 (2 pcs included) or HDWM-FSS-100, Plastic eyelets - VO-xxxo, Metal eyelets - VO-Wx-xx/xx

The top and bottom covers have cable inlets covered by metal and plastic covers.

For download

Product Catalog: Data and Telecommunication Solutions and Racks

Product Catalog: Data and Telecommunication Solutions and Racks

Catalogs and brochures
File size: 54.04 MB
Uploaded: 11. 2. 2025
Download file: en
Language versions:
Datasheet: OPTIMAL Cable Management

Datasheet: OPTIMAL Cable Management

Datasheet
File size: 607.27 kB
Uploaded: 10. 2. 2025
Download file: en
Language versions:

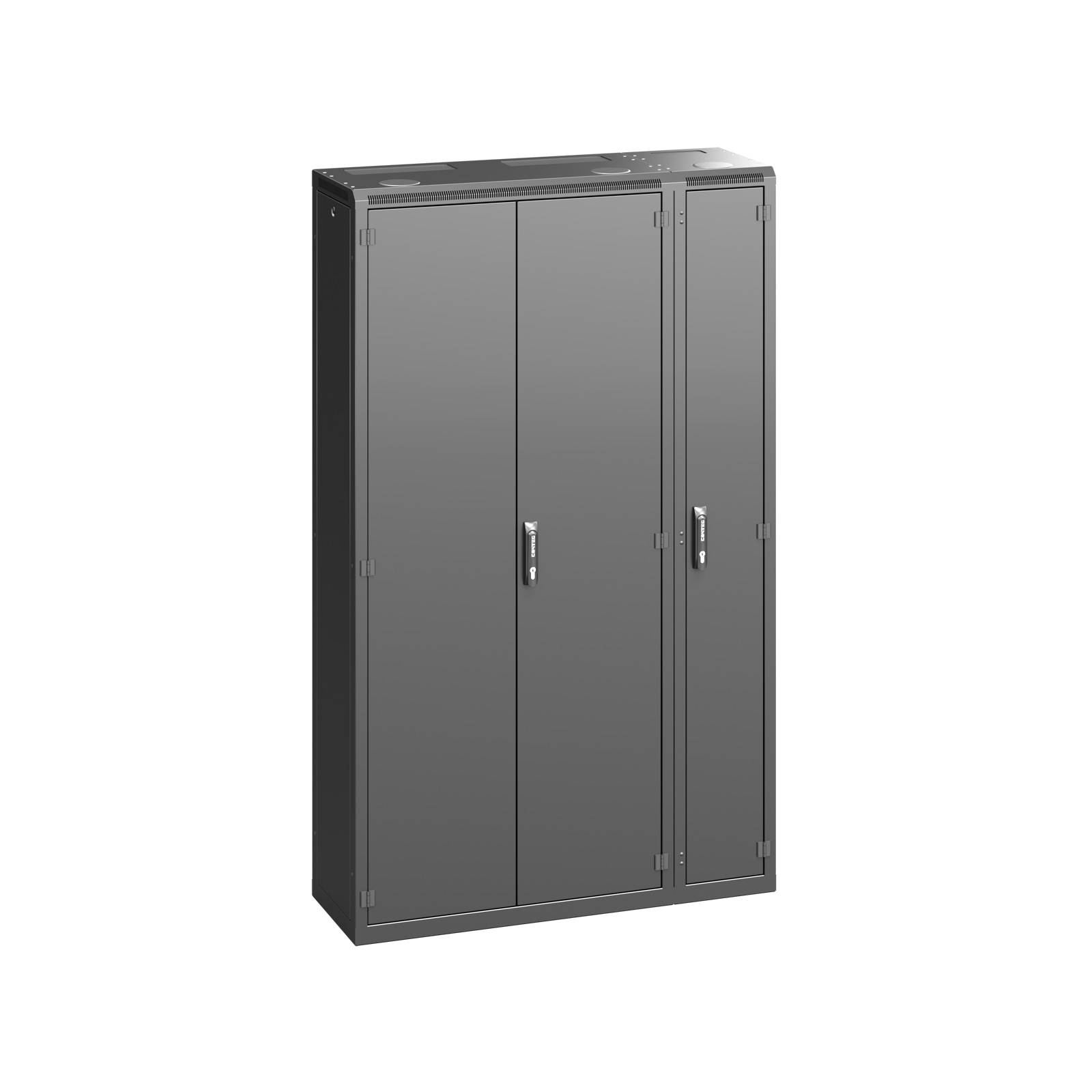

20210426142251Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-main-web.jpg
