RAMOS Ultra-EX-I8

Easy to use expander for adding 8 intelligent ports to RAMOS Ultra, RAMOS ACS, and RAMOS Optimax solutions.

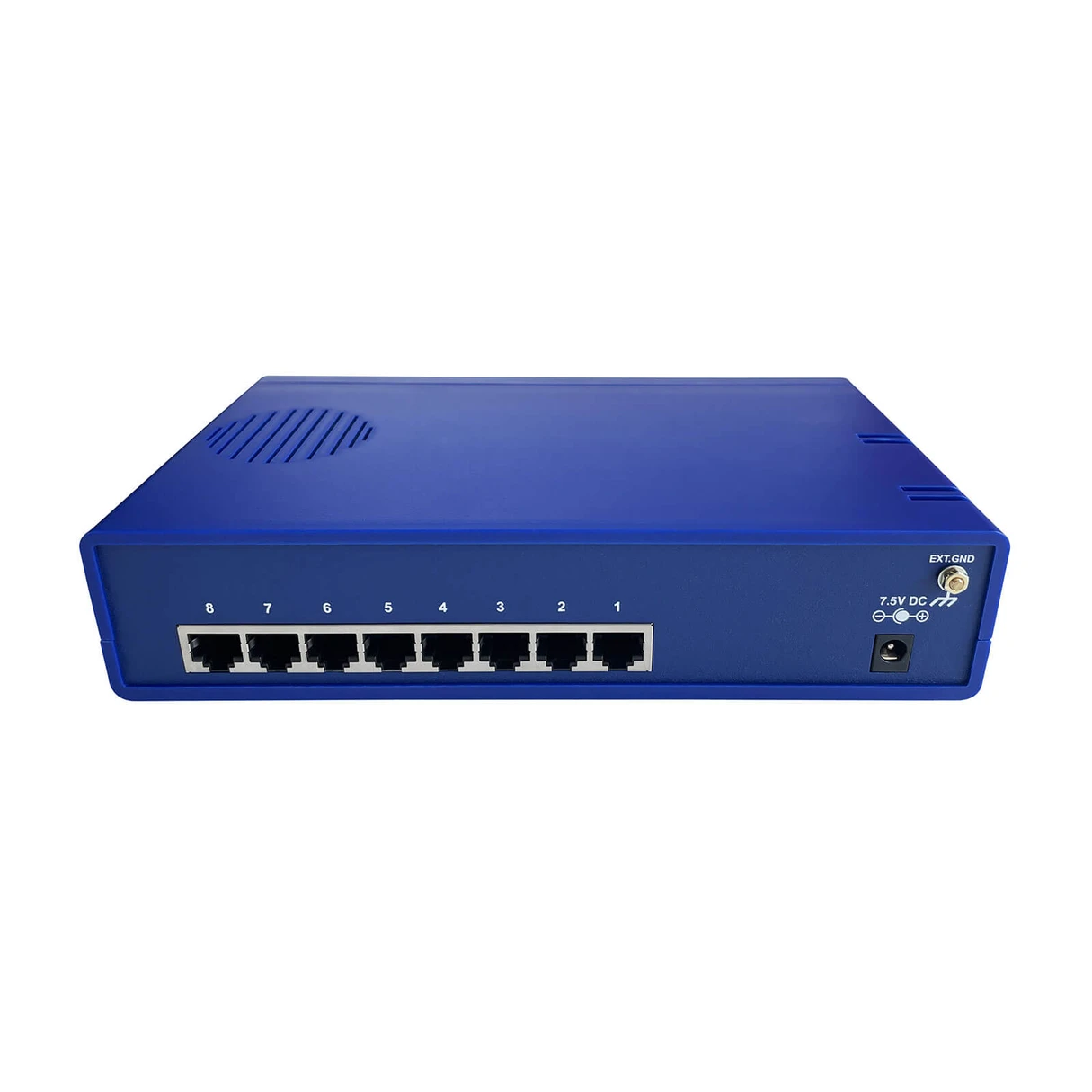

RAMOS ULTRA-EX-I8 is an expansion module that has 8 intelligent sensor ports and is connected to any expansion ports located on the front panel of the RAMOS ULTRA or RAMOS ULTRA ACS base units. They are connected using a standard CAT5 LAN cable.

The expander may also be daisy-chained using the E-Out/E-In ports on other Expanders. For Expansion can be used cable with Max length of 300 m between each unit.

Compatible with RAMOS Ultra, RAMOS Ultra ACS, and RAMOS Optimax standard expansion ports.

The front pair of LEDs indicate the status of the connected accessories of all 8 intelligent ports.

Code: RAMOS Ultra-EX-I8

Parameter Value
Ports

2 Expansion Ports (connection via LAN cables)

8 Intelligent ports for accessories

LED indication

LED indications for POWER, LINK, 8x STATUS, and 8x ONLINE for sensors

Size

46 x 216 x 138 mm

Operating environment

Temperature: Min. -35° C – Max. +55° C

Humidity: Min. 20% – Max. 80% (Non-Condensing)

Suitable for

RAMOS Ultra, RAMOS Ultra ACS, RAMOS Optimax

Package includes

7.5 VDC power supply with cord, brackets, and screws
