SOHO On-Wall ACP

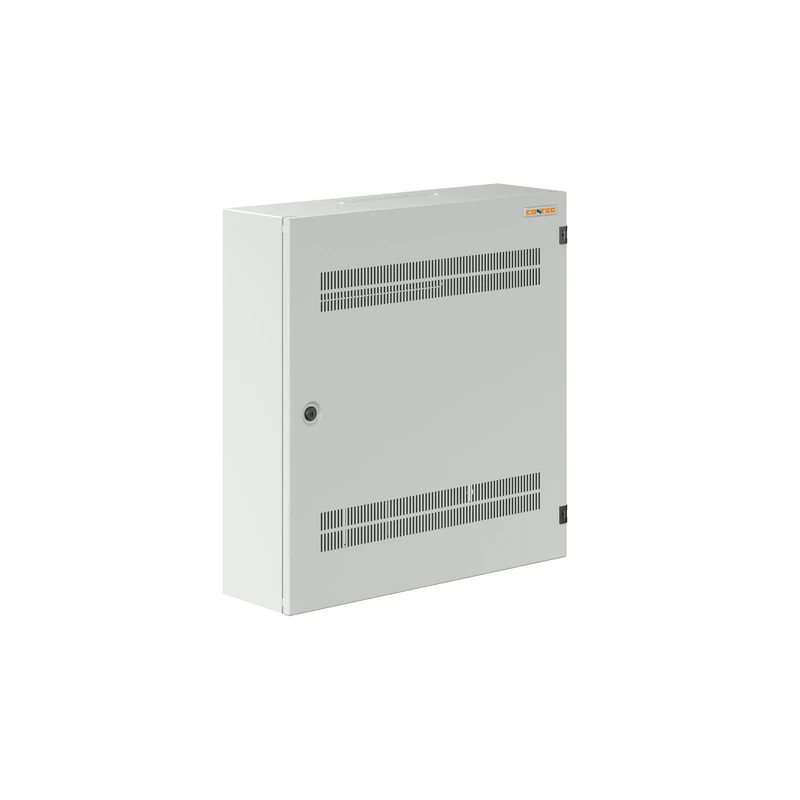

The SOHO On-Wall ACP 19" distribution enclosure is aesthetically pleasing and offers greater flexibility during the installation process.

The SOHO On-Wall ACP 19" distribution enclosure is an aesthetically pleasing and cost-effective solution for the developer/homeowner. It also offers a lot of flexibility during the installation process. The On-Wall solution's low profile makes it ideally suited for residential spaces where space may be limited. The SOHO On-Wall solution offers 6Us of mounting space ad gives you flexibility when mounting standard 19" equipment, such as patch panels, wire managers and Integrated Access Devices. Equipment is secured within a very small footprint that remains hidden until access is required. Wire management is built in to the SOHO On-Wall to ensure that copper and/or fiber cables can be managed properly.

MAIN ADVANTAGES:

  • Equipped with extrusions for both active equipment installation (2U) and mounting passive components (4U)
  • Offers access to installed equipment through front door

Parameter Value
Height 550 mm
Width 530 mm
Depth 155 mm
Color RAL 7035 (other color designs available upon request)
Standard configuration 1 pair of fixed 19" vertical extrusions (4U)
1 pair of fixed 19" horizontal extrusions (2U)
1 perforated metal sheet door with lock
Datasheet

DS-soho-on-wall-en.pdf

File size: 518 kB

Other versions CZ de ru fr


File size: 78 kB



File size: 59 kB



File size: 59 kB



File size: 104 kB



File size: 199 kB

Catalog

Product Catalog—Data and Telecommunication Solutions and Racks

File size: 24466 kB

Brochure

Brochure—Complete Solutions for Datacenters

File size: 3003 kB

Brochure

Brochure—Solutions for Server Rooms and Cabling Installations

File size: 1210 kB
