Wall-Mounted Fiber-Optic Splice Box

Wall-mounted fiber-optic splice boxes are used for termination and fiber slack management of optical fibres outside a 19" rack.

Wall-mount fiber-optic splice boxes are used for the termination and fiber slack storage of optical fibers outside 19" racks. In order to cater to different fiber counts, there are 2 versions of the wall-mount fiber termination and splice boxes available, along with a wide assortment of connector panels.

Parameter Value
Types ORN-01, ORN-02
Single version supports Max. 8 connectors: ST, SC or FC; 4 DSC or FCD

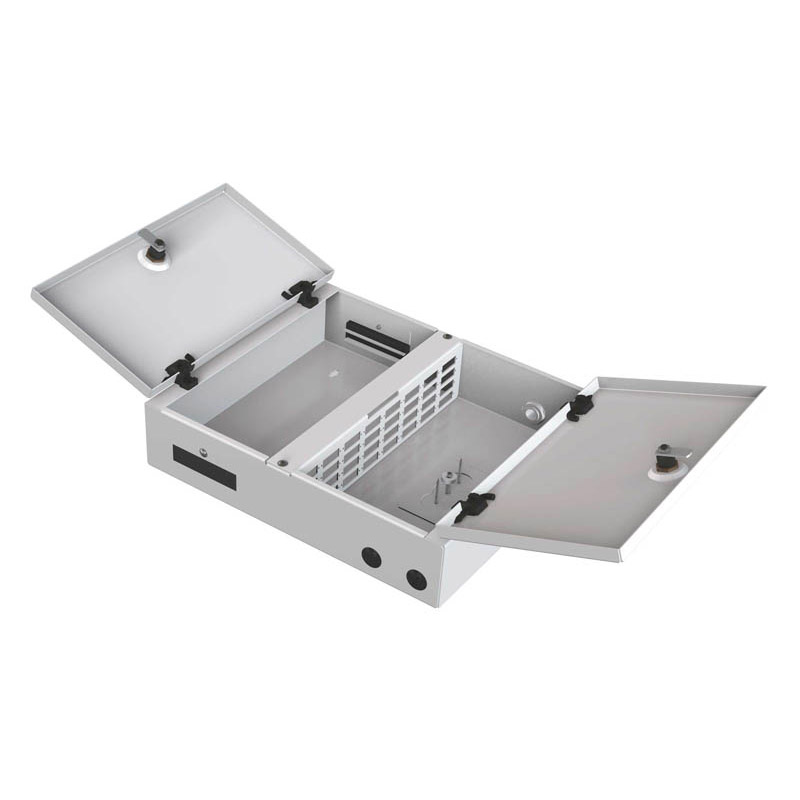

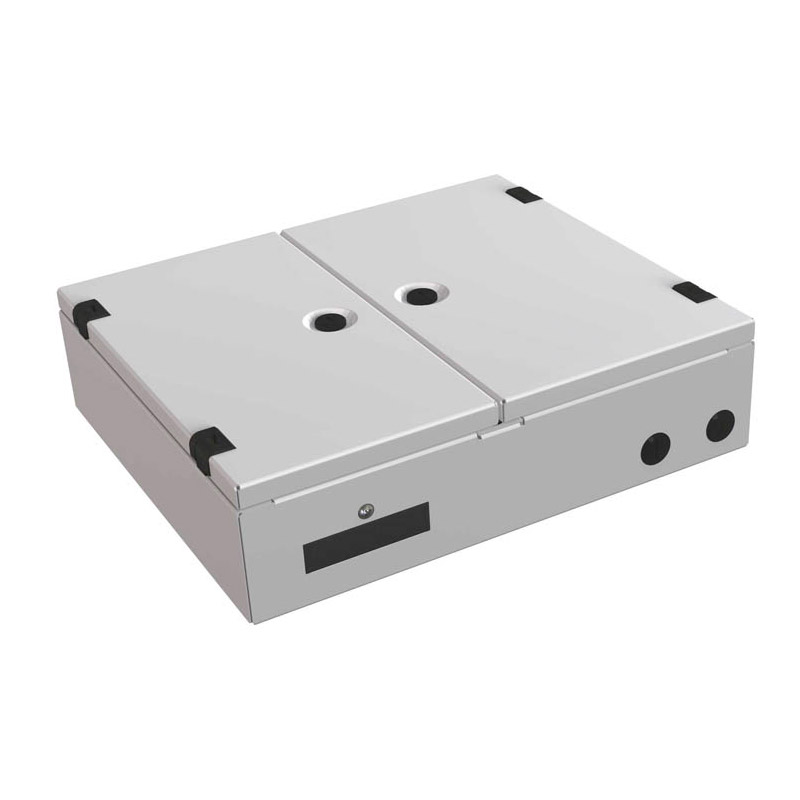

Double version supports Max. 24 connectors: ST, SC or FC; 12 DSC or FCD
Color RAL 7035
Standard configuration

Modular panels with openings for connectors
Empty openings can be blanked off
Cable inlets through PG couplers
Holder for optical cassette installation
