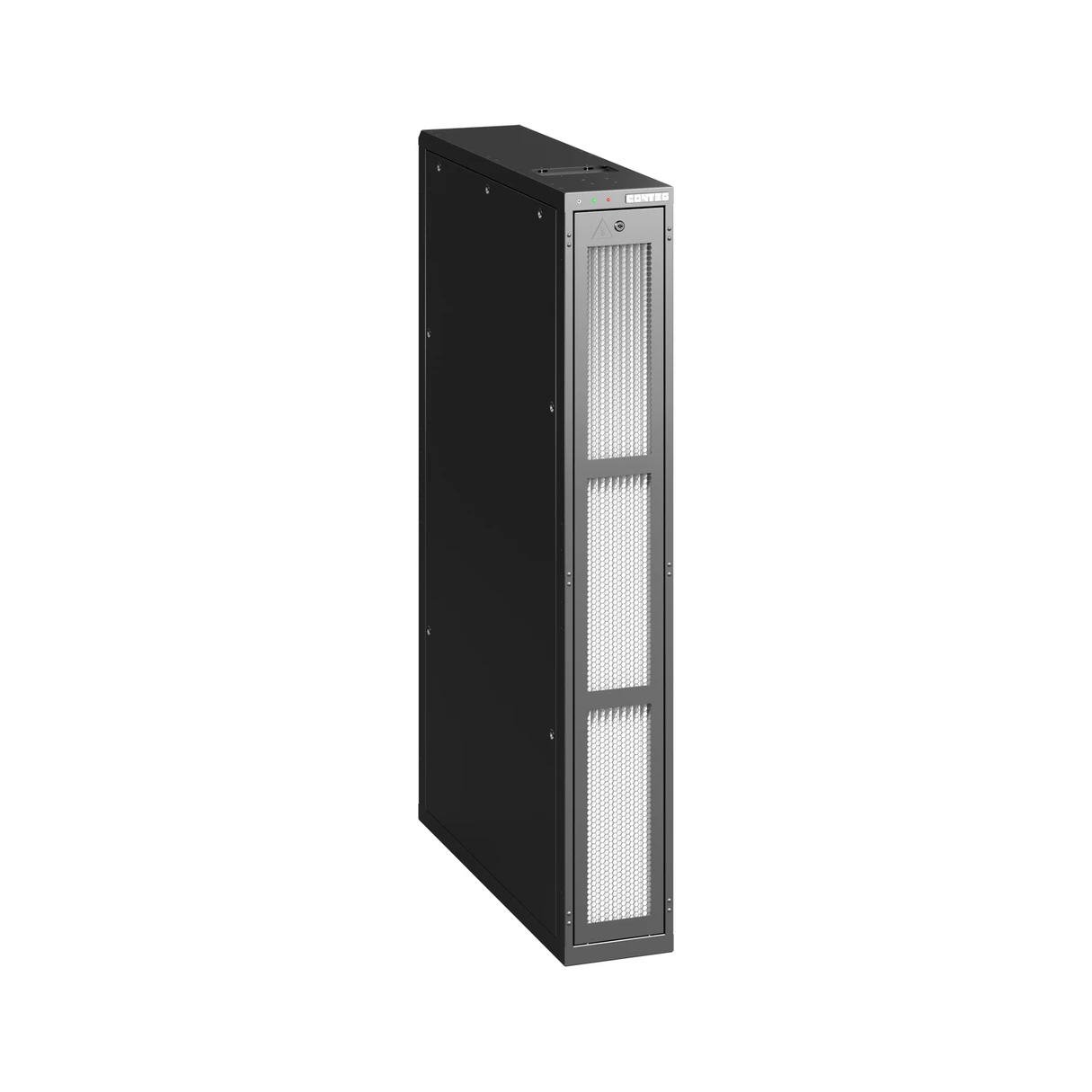

CoolTeg Plus DX

The CoolTeg Plus DX indoor unit with a Mitsubishi outdoor compressor unit is a highly effective system especially suitable for server rooms up to 100kW. The new generation is equipped with EC fans and touch.

Besides fans and regulation components, the indoor CoolTeg DX units include the highly effective evaporator for refrigerant R410A. Each indoor unit must be connected with refrigerant pipes to the Mitsubishi outdoor compressor unit. The split system will then be able to control itself. The outdoor Mitsubishi units are equipped with frequency-controlled compressors, electronic expansion valves, and other components. They come in three capacities – 7kW; 12 kW and 18 kW (stepless regulation) in various versions. In our CoolTeg Plus air-conditioning units we use a combination of the newest technologies and precision controls based on our experience and feedback from data centers around the world. Since fans, heat exchangers and control parts are becoming more advanced, we have modified our products to make sure our clients get the best and latest features.

We started producing a new generation of CoolTeg Plus units with energy-efficient fans that use EC technology as well as high-efficiency copper-aluminum heat exchangers. We can now measure the humidity and temperature in both the cold and hot zones. The unit's air intake and blowing areas were also enlarged to ensure perfect air distribution. The main difference is most noticeable in the unit's control part. We are now using an absolutely new controller with advanced Conteg software as well as a new 4.3” graphic touchscreen resistive display with 65,000 colors that correspond with the latest technology. One display can be used for all CoolTeg units in one data center – up to 16 units with a maximum distance of 500 m. Communication through TCP/IP protocol and the integrated web server is standard, and remote control from any computer connected to the Internet is manageable. CoolTeg Plus DX indoor air-conditioning units are designed to be used with select Mitsubishi Electric outdoor high-end compressor units. CoolTeg Plus is a basic part of Conteg's new generation of Targeted Cooling solutions for all projects in modern data centers.

The cooling system performance is limited by the distance between the indoor and outdoor units (see detailed technical documentation) and their height differences. Cooling operation is guaranteed at ambient temperatures ranging from -15 to +46°C. Used in conjunction with the outdoor compressor unit, CoolTeg DX is a highly effective system that comes with ecological refrigerant and is especially suitable for server rooms with a total capacity of up to 100 kW. When a higher cooling capacity is needed, water systems are probably more efficient. The cooling capacity of each unit can be changed, according to individual requirements, by opening the electronic expansion valve and by changing the compressor and the fan's speed (fans in the indoor and outdoor units). If it is necessary to reduce the relative humidity to the setpoint, the unit will automatically respond by reducing airflow and increasing the cooling performance. CoolTeg DX units provide you with top-quality performance, while at the same time reducing your annual energy consumption levels better than any other direct expansion unit on the market today.



MAIN ADVANTAGES
  • No water in the datacenter
  • Independent indoor and outdoor unit systems ensure 100% redundancy
  • Easy installation and additional capacity expansion
  • Ecological refrigerant R410A
  • Fluent cooling capacity control from 30 to 100 %



Parameter Value
CoolTeg Plus

Width 300 mm, depth 1000 mm or 1200 mm, height from 42U (1978 mm) to 48U (2245 mm)

5 radial fans with high-performance EC motors

One indoor unit must be connected to one selected outdoor Mitsubishi Electric compressor unit

Cooling capacity depends on the outdoor unit (12 kW or 18 kW) (temperature of return air of 45°C and SHR=100%; ambient temperature +35°C)

The electric power supply of the indoor unit is 230V/50Hz, for the outdoor unit see detailed technical information. The indoor unit can be powered through the outdoor unit or separately.

The momentary cooling capacity is adjusted by changing the speed of the compressor, indoor fans, and outdoor fans to keep the temperature set-points.

The minimal cooling capacity is about 30% of the nominal one. In the long term, the heat load must reach at least 50% of the nominal cooling capacity determined by the outdoor unit.

Communication via 4.3” color touchscreen display or through digital I/O connectors.

Display with an integrated web server can control up to 16 units in the group, with advanced functions (standby unit, overload start, etc.)

TCP/IP is standard and other protocols (Bacnet, Modbus, etc.) are available upon request.

Software upload and data download via USB flash memory disk.

Connected with AC-PUHZ-ZRP71

Net cooling capacity 7 kW

Nominal indoor unit airflow is 2100 m3/h at a power consumption of 150W.

The outdoor compressor unit power supply is a standard one-phase 230V/50Hz

The refrigerant R410A connecting pipes with standard dimensions (10/16 mm).

Connected with AC-PUHZ-ZRP125

Net cooling capacity 12 kW

Nominal indoor unit airflow is 2500 m3/h at the power consumption of 250W. (Maximal airflow 3800 m3/h)

The outdoor compressor unit power supply is a standard one-phase 230V/50Hz but three-phase units are also available (3x400V/50Hz).

The refrigerant R410A connecting pipes with standard dimensions (10/22 mm).

Connected with AC-PUHZ-ZRP200

Net cooling capacity 18 kW

Nominal indoor unit airflow is 3800 m3/h at 770W power consumption.

The outdoor compressor unit power supply has three phases (3x400V/50Hz).

The refrigerant R410A connecting pipes with standard dimensions (10/22 mm)
