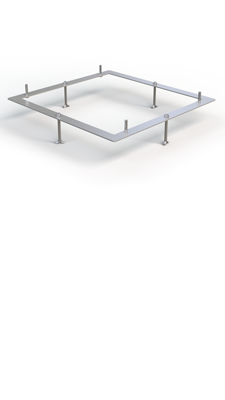

Fixing Frame for Cast Concrete Base
Welded frame to be set in a concrete plinth.
Product introduction
Welded frame intended for setting into a concrete plinth (complete with anchors and screws). If used correctly, ensures precise positioning of the cabinet on the concrete plinth, aligning the position of the screws on the frame and the holes in the bottom of the cabinet base. Remove the bottom cable tray to secure the cabinet with nuts on the inside of the stainless steel base.Information
Key features
| Product line name |
Fixing frame for anchoring to a concrete base |
|---|---|
| Material |
4 mm hot-dip galvanized steel sheet |
| Application |
in combination with OMR-xx-xxxx cabinets |
| Deliverables |
including mounting accessories |
