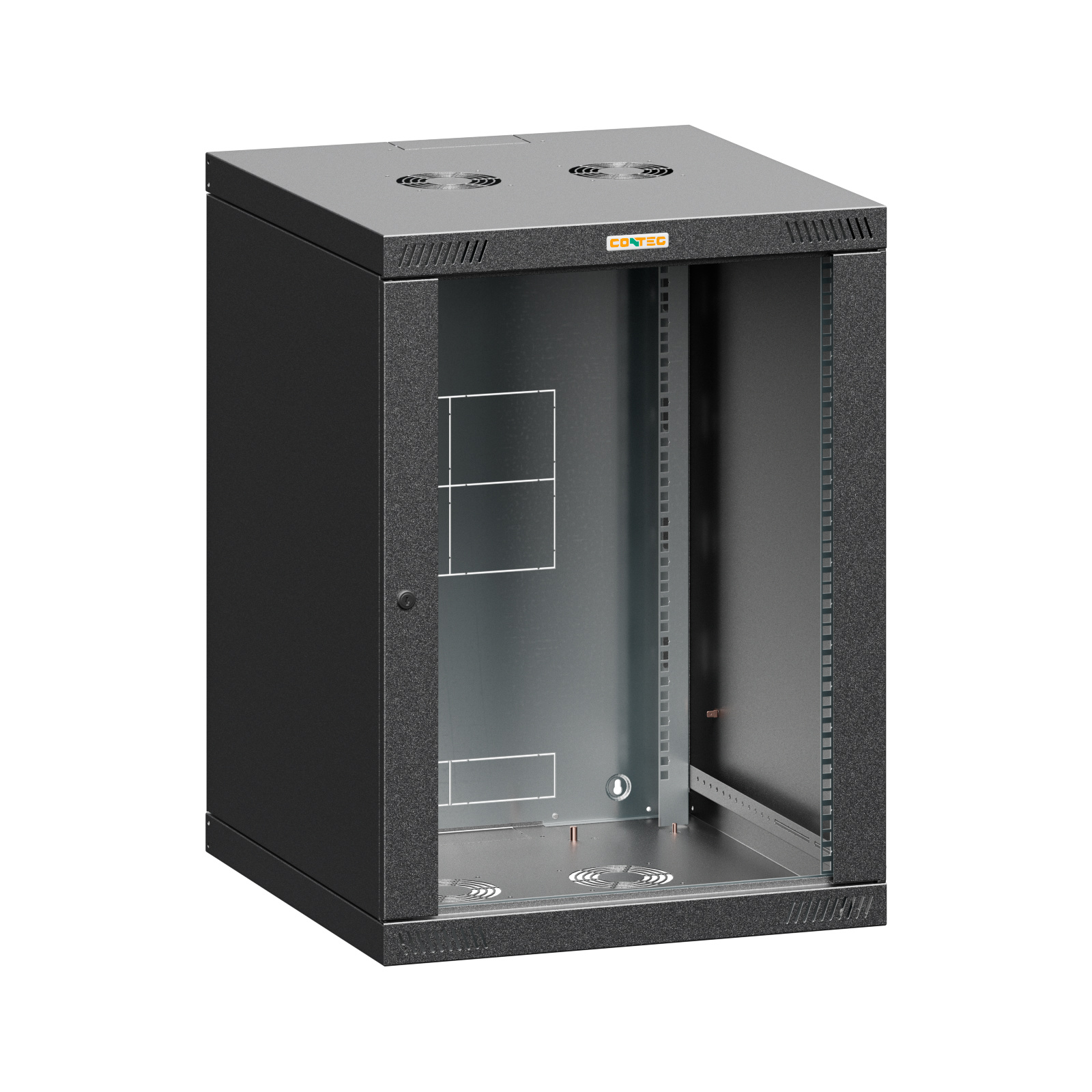

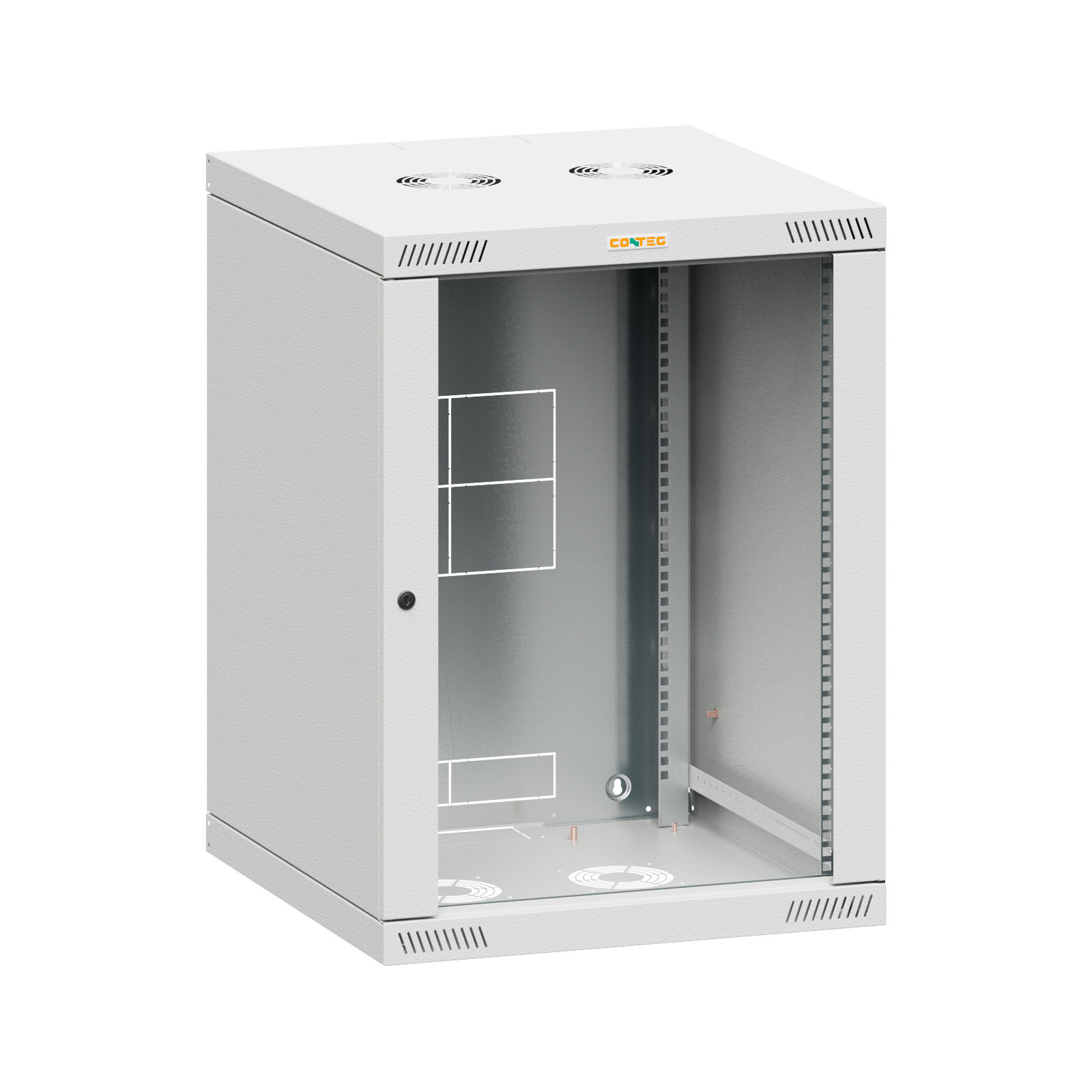

iSEVEN Flex RQN

Unlimited access to installed devices from the front and sides. Load capacity up to 50 kg. This is an unassembled version (flat-packed) of the iSEVEN RQN racks.

Datasheet Learn more

Where to buy?

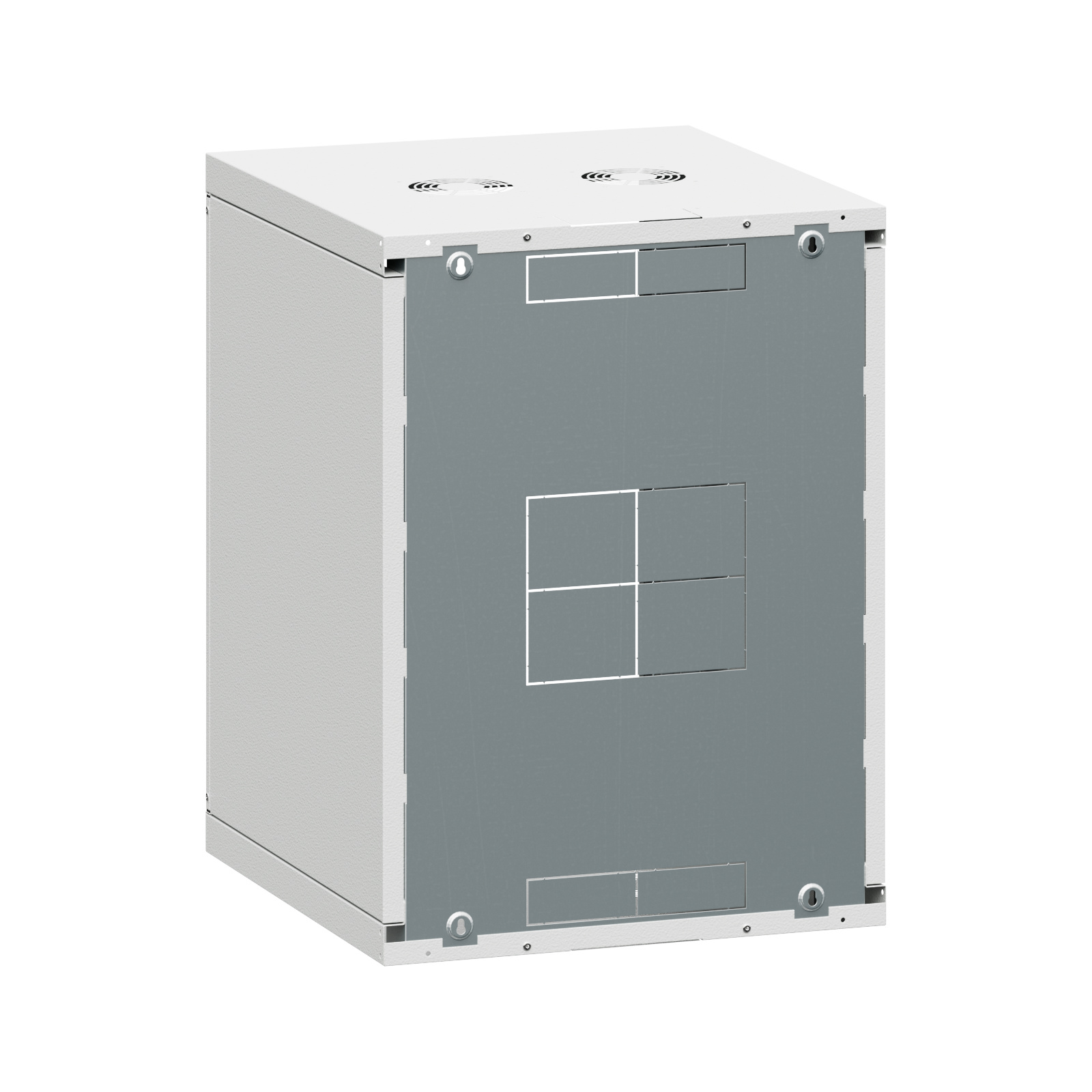

iSEVEN-Flex-RQN_RQN-U-15-60-60_RAL7035-back

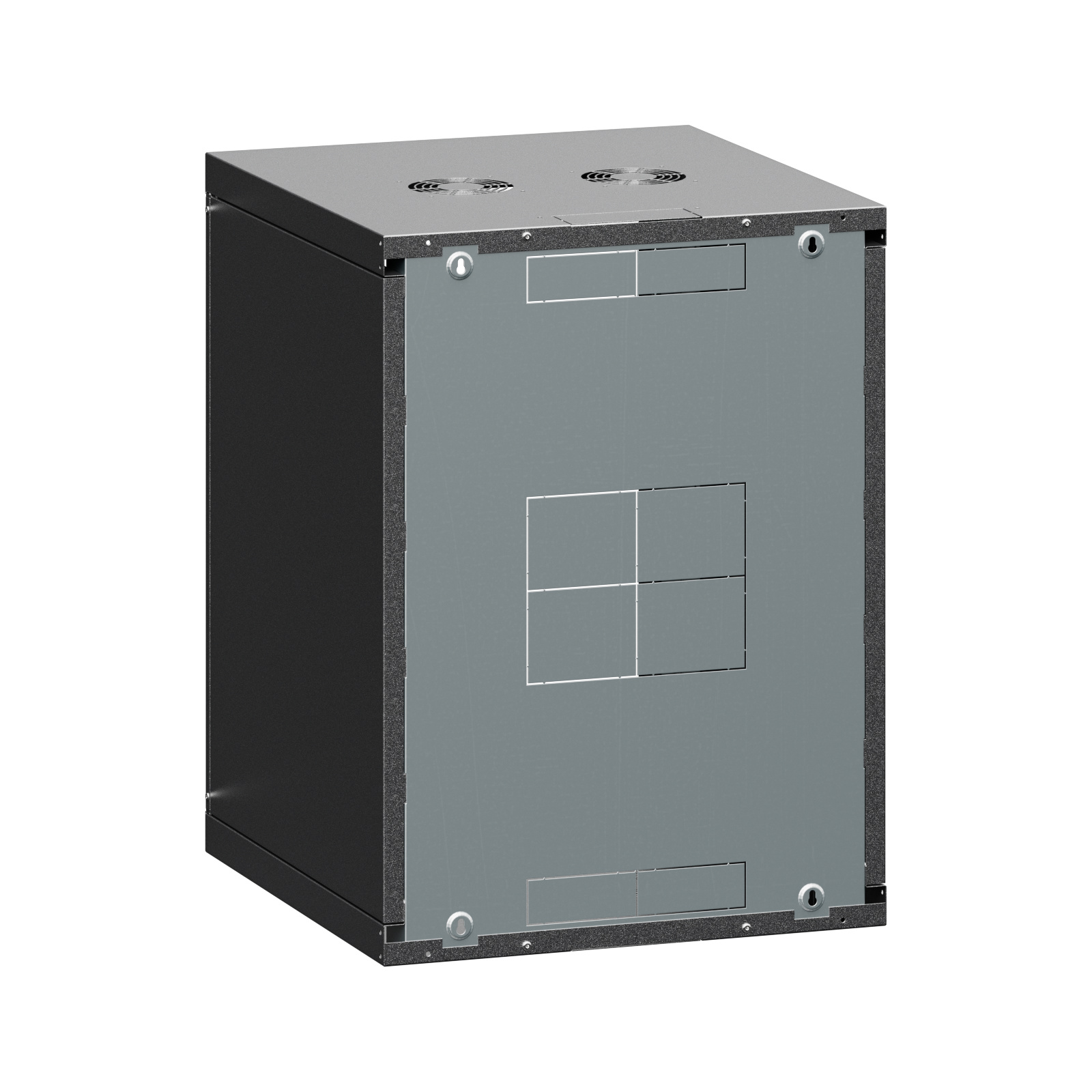

iSEVEN-Flex-RQN_RQN-U-15-60-60_RAL9005-back

Product introduction

The iSEVEN Flex RQN wall-mounted racks are ready for daily use and offer an outstanding balance of price, utility and quality. These are unassembled versions — flat-packed for easy transport and storage — of our iSEVEN RQN racks.

Key benefits of the product

Unassembled versions of our iSEVEN RQN racks for easy shipping and storage
Simple and quick assembly
Unobstructed access to installed equipment from front and sides
Load rating up to 50 kg

Information For download

Information

Key features

Product line name	iSEVEN Flex RQN
Height (U)	15, 21, 6, 9, 12, 18
Height (mm)	374, 507, 640, 773, 907, 1 040
Height packaged (mm)	150, 220
Width (mm)	572
Width packaged (mm)	590
Depth (mm)	600, 450
Depth packaged (mm)	455, 540, 670, 805, 940, 1 070
Design	0.8 and 1.5 mm sheet steel Delivered unassembled; assembly at installation site Quick and easy assembly
Load capacity (kg)	50
Front door	Security-glass (EN 12150-1) or sheet steel door Reversible door—easy re-hanging to open right or left (at installation site) Door opening angle 180°
Back door	Rear panel - Easy wall installation - Cable entry for wall through cables - Integrated additional 19" extrusions for fixing
IP rating	IP20
Color design1	Powder paint RAL 7035, RAL 9005, other colors upon request
Air conditioning	2× top cover perforation 2× bottom cover perforation
Standard configuration	1 pair sliding 19" vertical extrusions 2 removable side panels with lock Tinted security-glass door (EN 12150-1) with lock GND/earthing kit
Cable inlets	Top and bottom openings for cable entry, size 150 × 56 mm, knock out opening Can be covered by sliding blank panel with butterfly nuts (DP-DB-200×68) or brush cable entry (DP-KP-KAR3) — ordered separately Cable entries on the rear edge of enclosure for straight cable path alongside the wall
