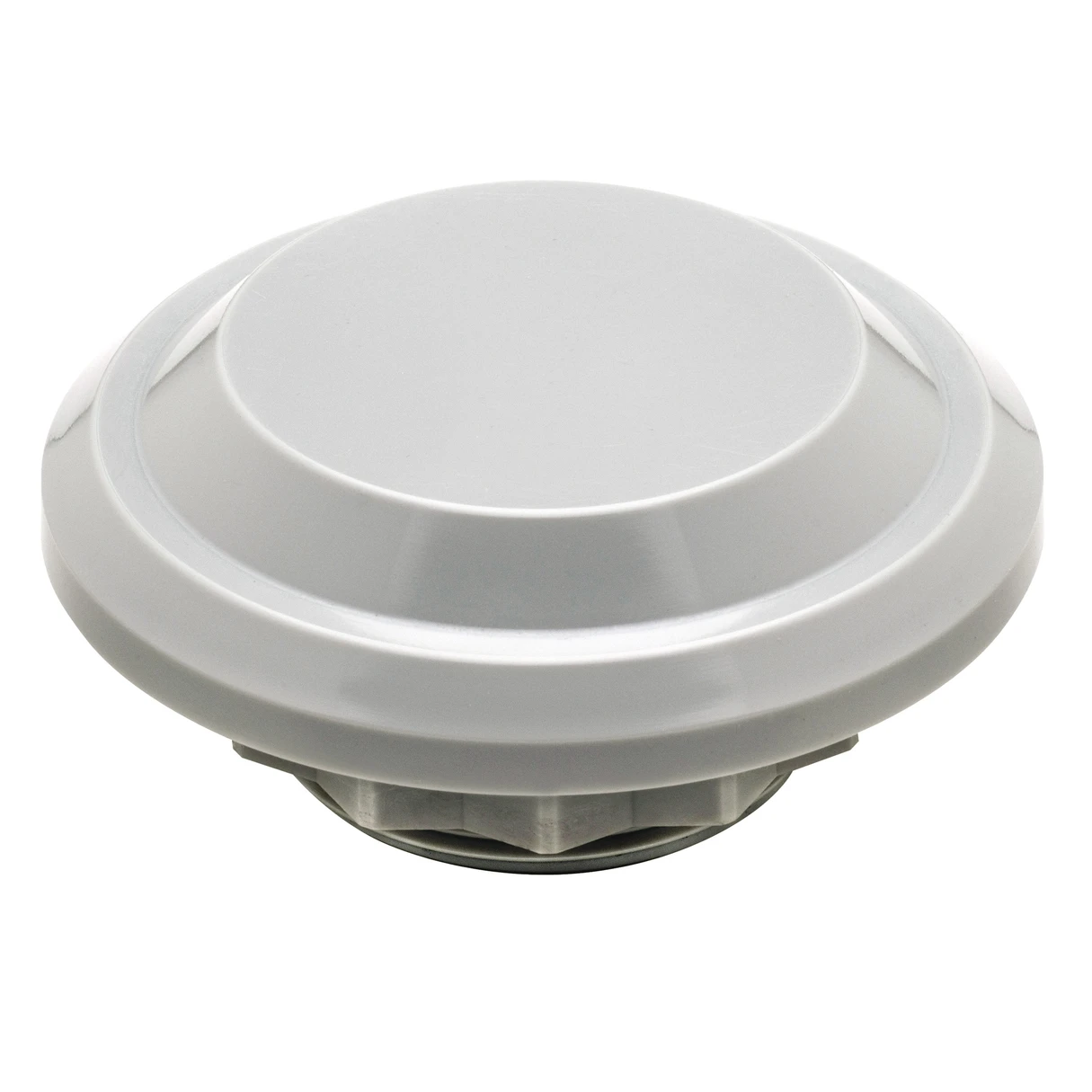

Pressure Compensator
This device controls inside pressure during changes of outside temperatures.
Especially when enclosures are exposed to changing climatic conditions (e.g. with outdoor siting), condensate may form in sealed enclosures due to pressure differences. The integral sealing membrane largely prevents such pressure differences and hence condensation; additionally, it also prevents the ingress of moisture from the outside.
Supply includes:
- 2 pcs of pressure compensator ready for connection
Parameter | Value |
---|---|
Mounting | PG 29 thread with union nut |
Fitting position | Vertical (note: protection type is restricted to IP 54 if fitting position of pressure compensatoris not vertical) |
Torque | 5 Nm (max. 10 Nm) |
Material | Plastic according to UL94 V-0, light grey |
Sealing | Sealing gasket NBR |
Air interface | 1,5 cm² |
Operating/storage temperature | -45 to +70 °C (-49 to +158 °F) |
IP protection | IP55 |
Dimensions | Ø 65.5 mm x 30.5 mm |
