Thermostat for Cooling and Heating
Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN rail
Product introduction

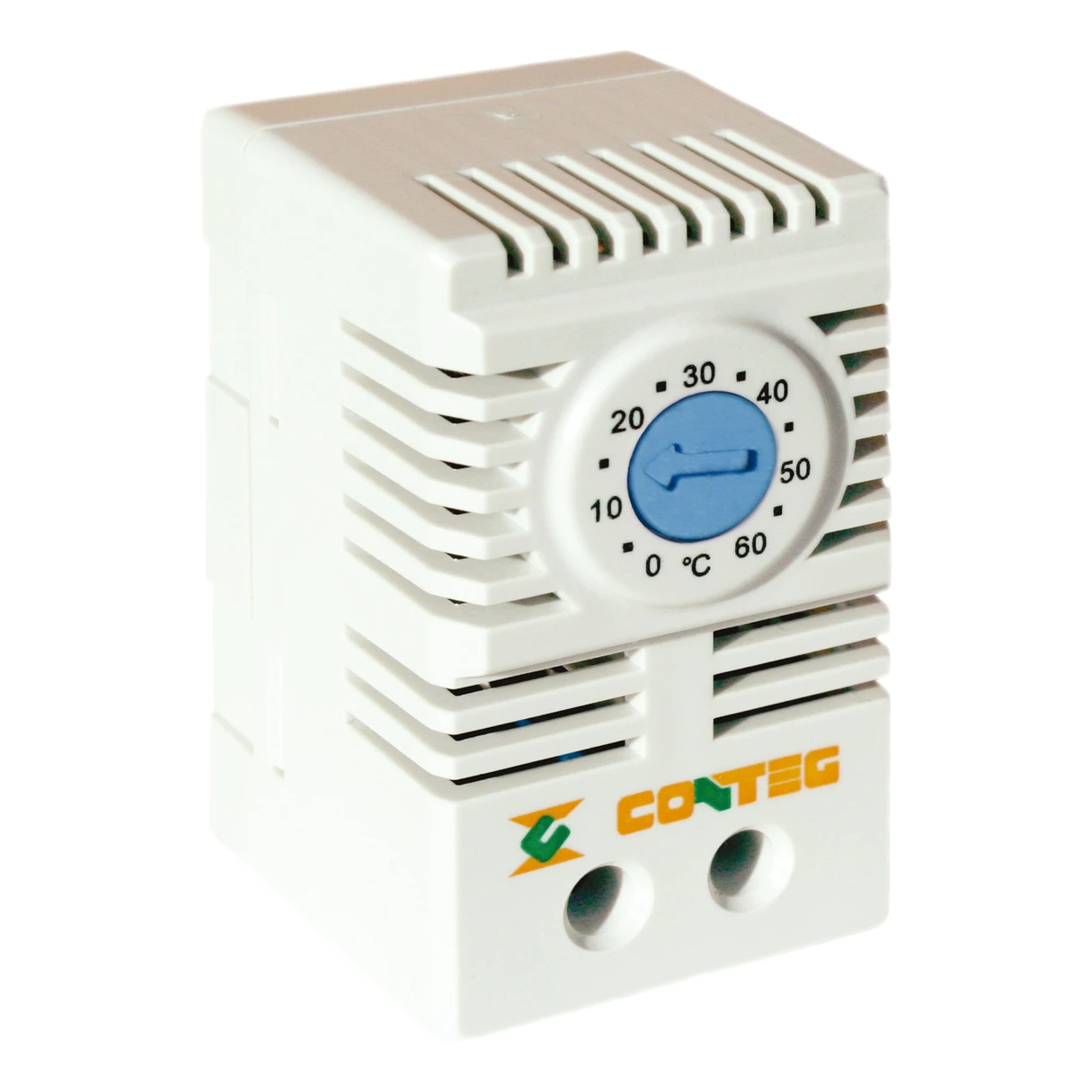

Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN railThermostat for cooling - for fan regulation. The thermostat switches on the ventilation unit when the set temperature is reached.

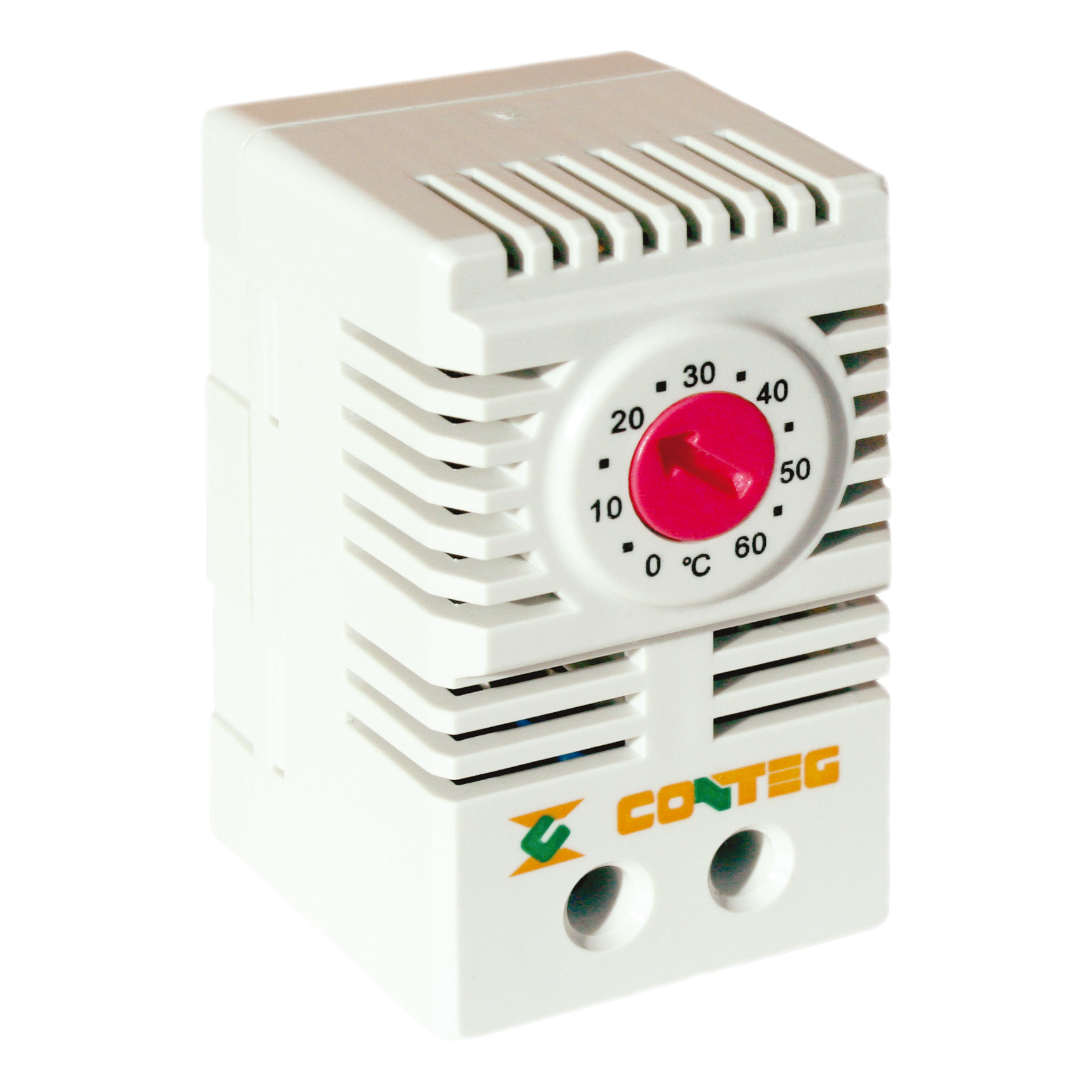

Thermostat for heating - for regulating heating units. The opening contact switches off the heating element when the set temperature is reached.
A combination of both thermostats is possible, provided that the temperature difference between the set temperatures is at least 5 °C.
Information
Key features
| Product line name |
Thermostat for cooling and heating |
|---|---|
| IP rating |
IP20 |
| Technical information |
Operating temperature |
| Dimensions |
55x33x43 mm |
| Connection diagram |
2-pole terminal (wire 2.5 mm2) |
| Assembly/Installation |
to a 35 mm DIN rail |
| Operating temperature |
-45 °C to +80 °C |
| Load capacity |
15 A (2 A), 120 V AC |
| Weight (kg) |
40 g |
| Tolerance |
± 4K |
| Hysteresis |
7°C ± 3 K |
| Thermostat |
Bi-metal thermostat |
| Temperature range |
0 °C to 60 °C (41 °F to 104 °F) |
| Maximum current |
AC 16 A for 10 sec. |
| Deliverables |
The unit is ready for installation |
