Wall-Mounted and SOHO Racks

WME-X19

Stainless steel

Suitable for use cases where higher environmental resistance is required. The design of this series offers high rigidity of the entire cabinet.

Datasheet Learn more

Where to buy?

Product introduction

The WME-X compact stainless steel cabinets are suitable for use cases with higher requirements for resistance to the environment. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet.
WME-X19 is a special category of single-door stainless steel 19"" cabinets suitable for IT equipment installations. As a standard, these cabinets are equipped with 19"" rails. The cabinets are available in depths of 400 and 500 mm and heights of 12, 17 and 21U.
Laser welding technology gives the cabinets clean design.

Key benefits of the product

The WME-X product line is UL listed.
One-door/two-door cabinet. The door is sealed with polyurethane foam around the entire perimeter and equipped with a twist lock or a three-point locking system.
Perforated mounting rails on the doors in cabinets from 500 mm of height
Perforated mounting rails on the side panels in cabinet from 250 mm of depth
Mounting plate with marked 50x50 grid
Accessories for wall mounting

Information For download

Information

Key features

Product line name	WME-X – stainless steel
IP rating	IP66 single-door design / IP55 double-door design according to EN 60529 (the degree of protection may decrease after mounting certain accessories)
Others	For outdoor use cases, you can choose from the outTEG WME-O series.
Technical information	Upon request, we will make cutouts and threads in WME-X cabinets for installations. We will make cutouts, perforations and threads and mount accessories to your specific requirements.
Material	Chassis material - stainless steel 1.4301 (AISI 304); stainless steel 1.4404 (AISI 316L) upon request Mounting plate material - hot-dip galvanized steel sheet Surface treatment - finely brushed finish
Application	Indoor and outdoor environment
Mechanical resistance	IK10 according to IEC 62262
Quotes	WME-X19 is a special category of single-door stainless steel 19" cabinets suitable for IT equipment installations. As a standard, these cabinets are equipped with 19" rails. The cabinets are available in depths of 400 and 500 mm and heights of 12, 17 and 21U.

Accessories

Spare Mounting Plate

Replacement mounting plate with 50x50 mm grid marking

Product introduction

Key benefits of the product

Accessories

Product Catalog: Industrial Enclosures

Brochure: Industrial Enclosures

Datasheet: WME-X

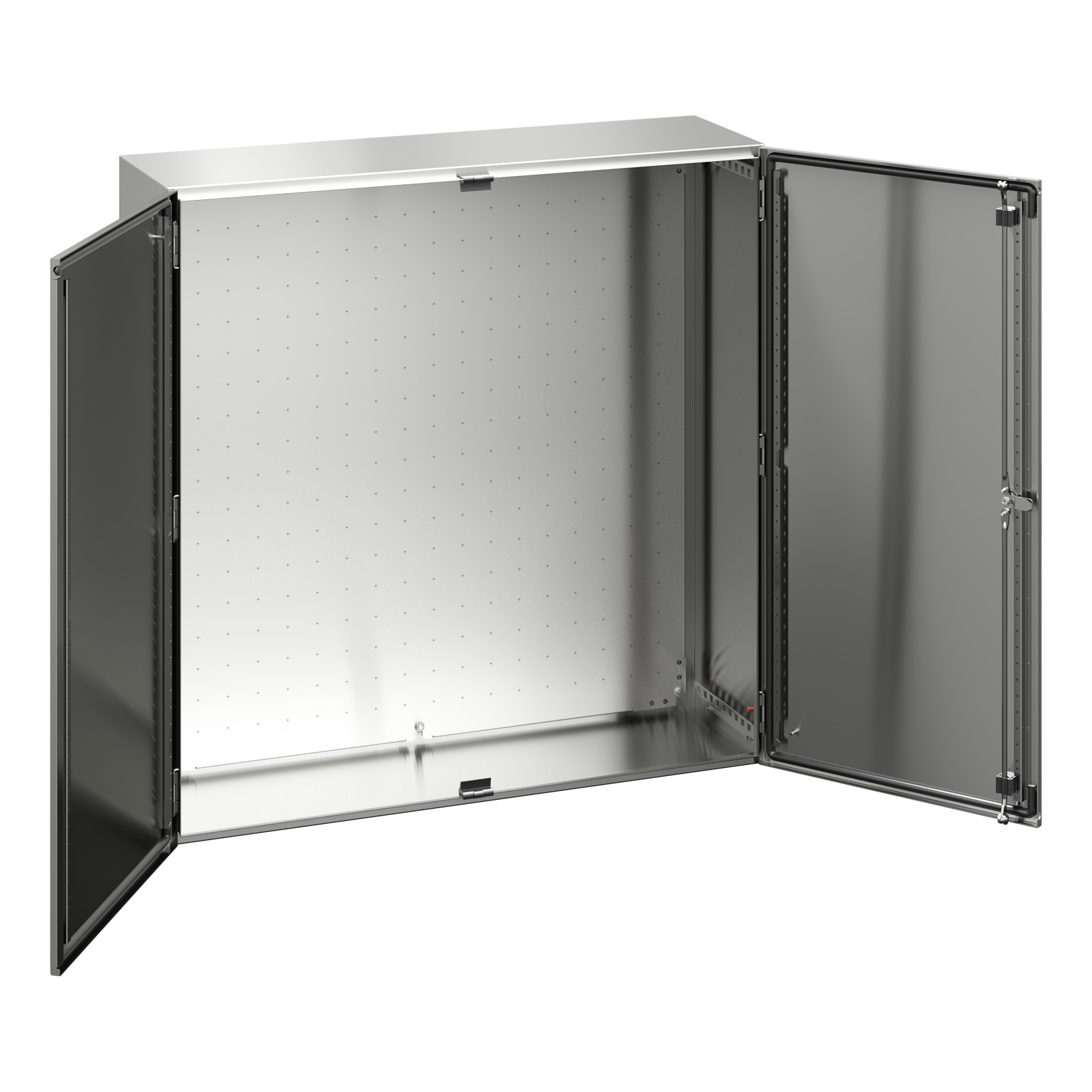

WME-X-201003-opened-WEB

WME-X-201003-main-WEB

WME-X-201003-back-WEB

WME-X-120803-opened-WEB

WME-X-120803-main-WEB

WME-X-120803-back-WEB

WME-X-060603-opened-WEB

WME-X-060603-main-WEB

WME-X-060603-back-WEB

WME-X-030215-opened-WEB

WME-X-030215-main-WEB

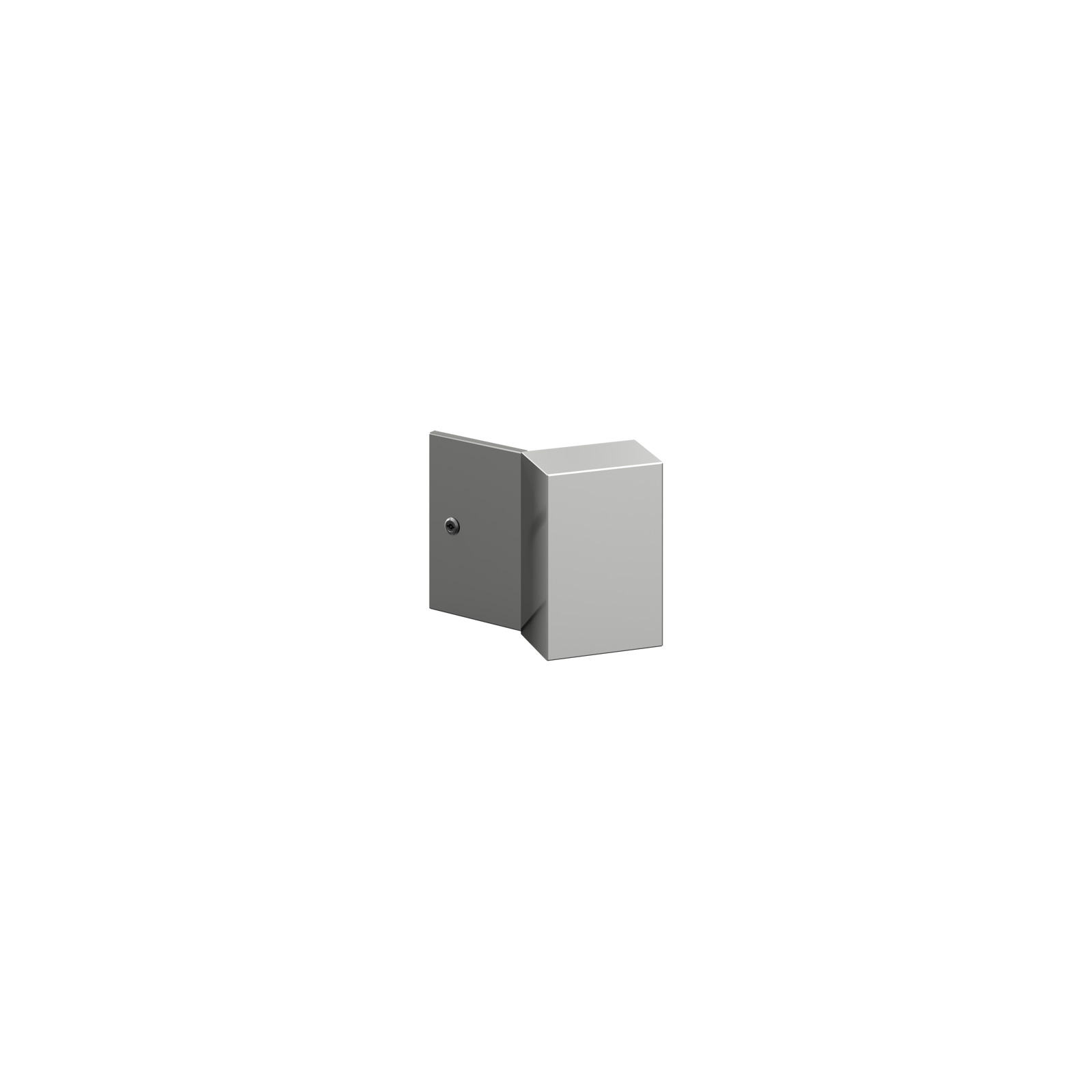

WME-X-030215-back-WEB
