Product introduction

The free-standing outdoor enclosure outTEG OMR is an ideal solution for projects requiring a stable internal climate. Its double-shell design reliably protects installed components from weather and vandalism — the compact construction prevents external disassembly of parts.

Resistance to external influences is provided by a stainless steel frame and aluminum-magnesium alloys. The enclosure is treated with a polyester powder coating with UV protection.

Key benefits of the product

  • Practical and functional enclosure design
  • Maximum corrosion protection
  • Welded stainless-steel frame (2 mm material thickness) with 25 mm system perforation
  • Enclosure body made of removable aluminum parts (doors, roof, side panels and rear panel)
  • Polyester powder coating with UV protection
  • PUR non-porous gasket — suitable for extreme temperature ranges
  • IP66 dust and water protection
  • Vandalism protection and mechanical resistance IK10
  • High stability during earthquakes (meets Bellcore test standards)
Information For download
To add a product to your order, you need to sign in/register

Information

Key features

Product line name

outTEG OMR
Height (U)
42, 21, 12, 16, 25, 30, 34
Height (mm)
600, 800, 1 000, 1 200, 1 400, 1 600, 2 000
Width (mm)
800, 650, 1 000
Depth (mm)
800, 600, 400, 500, 1 000, 700
Design
Rails
Note

For the outTEG OMR outdoor enclosures we offer cooling and heating to maintain a favorable internal temperature for installed equipment. We will recommend the suitable fan or cooling unit, modify the enclosure for their installation, and can also preinstall them.
Material

Back panel, doors, roof - 2 mm aluminum AlMg3
Frame, plinth - 2 mm stainless steel sheet
Deliverables

fully assembled double-shell outdoor cabinet

ventilation - natural air flow thanks to perforations in the lower and upper edges of cabinet shell parts

rear panel

removable roof with natural air flow

front door with multi-point locking system, lock 333, door stop, door opening can be easily switched from right to left

100 mm plinth

vertical mounting rails with 25 mm system perforation

bottom cable tray, full
IP rating

IP66 according to the EN 60529 standard (the degree of protection may decrease after mounting certain accessories)
Color design

Cabinet casing - RAL 7035 (light grey, outdoor use, with UV protection)
Roof, plinth - RAL 7046 (dark grey, outdoor use, with UV protection)

Accessories

Thermoelectric Units
Thermoelectric Units
The technology is based on the Peltier phenomenon, where current passes through a circuit with two different conductors connected in series. As a result, one of the surfaces cools down while the other heats up.
Product details
To add a product to your favorites, you need to sign in/register
19", 21" and ETSI Vertical Rails
19", 21" and ETSI Vertical Rails
Vertical rails for mounting of IT components (19" and 21") and telecommunications equipment (ETSI).
Product details
To add a product to your favorites, you need to sign in/register
Horizontal and Vertical Rails
Horizontal and Vertical Rails
The combination of rails is suitable for the installation of heavier equipment, or the creation of additional mounting planes in all 3 axes.
Product details
To add a product to your favorites, you need to sign in/register
Perforated Roof for outTEG OMR
Perforated Roof for outTEG OMR
The perforated roof improves outflow of warm air from the outTEG OMR outdoor cabinets.
Product details
To add a product to your favorites, you need to sign in/register
Side Panels With Forced Ventilation
Side Panels With Forced Ventilation
Side panels with double-shell design with a fan, filter and outlet grate for OMR-DN-xxxxxx-R outdoor cabinets.
Product details
To add a product to your favorites, you need to sign in/register
Side Panels With Grid
Side Panels With Grid
For outTEG OMR outdoor cabinets, consisting of outer and inner shell, ready for cutouts.
Product details
To add a product to your favorites, you need to sign in/register
Thermostat for Cooling and Heating
Thermostat for Cooling and Heating
Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN rail
Product details
To add a product to your favorites, you need to sign in/register
Pressure Compensator
Pressure Compensator
A device for compensating the pressure building inside the cabinet due to ambient temperature fluctuations.
Product details
To add a product to your favorites, you need to sign in/register
Drainage Device
Drainage Device
Accessories for condensate drainage in use cases with great fluctuations in ambient temperatures.
Product details
To add a product to your favorites, you need to sign in/register

For download

Product Catalog: Outdoor Enclosures

Product Catalog: Outdoor Enclosures

Catalogs and brochures
File size: 18.28 MB
Uploaded: 22. 5. 2025
Download: en / Display: en
Language versions:
cs ,  fr
Case study: outTEG OMR, Pyrenees, France

Case study: outTEG OMR, Pyrenees, France

Catalogs and brochures
File size: 421.8 kB
Uploaded: 8. 3. 2025
Download: en / Display: en
Language versions:
cs ,  fr ,  de
Brochure: outTEG OMR

Brochure: outTEG OMR

Catalogs and brochures
File size: 784.26 kB
Uploaded: 8. 3. 2025
Download: en / Display: en
Language versions:
cs ,  de ,  fr
Brochure: Outdoor Enclosures

Brochure: Outdoor Enclosures

Catalogs and brochures
File size: 3.01 MB
Uploaded: 11. 2. 2025
Download: en / Display: en
Language versions:
cs ,  fr ,  de
Datasheet: outTEG OMR

Datasheet: outTEG OMR

Datasheet
File size: 5.13 MB
Uploaded: 22. 5. 2025
Download: en / Display: en
Language versions:
cs ,  fr
two-outTEG-OMR-DN-106506-R-connected-in-a-row-with-a-plinth-400mm

two-outTEG-OMR-DN-106506-R-connected-in-a-row-with-a-plinth-400mm

Obrázky
File size: 273.67 kB
Uploaded: 27. 3. 2025
Download
OMR-DW-106506-R

OMR-DW-106506-R

Obrázky
File size: 79.59 kB
Uploaded: 8. 3. 2025
Download
OMR-DW-106506-R-opened

OMR-DW-106506-R-opened

Obrázky
File size: 184.13 kB
Uploaded: 8. 3. 2025
Download
outTEG-OMR-opened-cut-out

outTEG-OMR-opened-cut-out

Obrázky
File size: 176.68 kB
Uploaded: 8. 3. 2025
Download

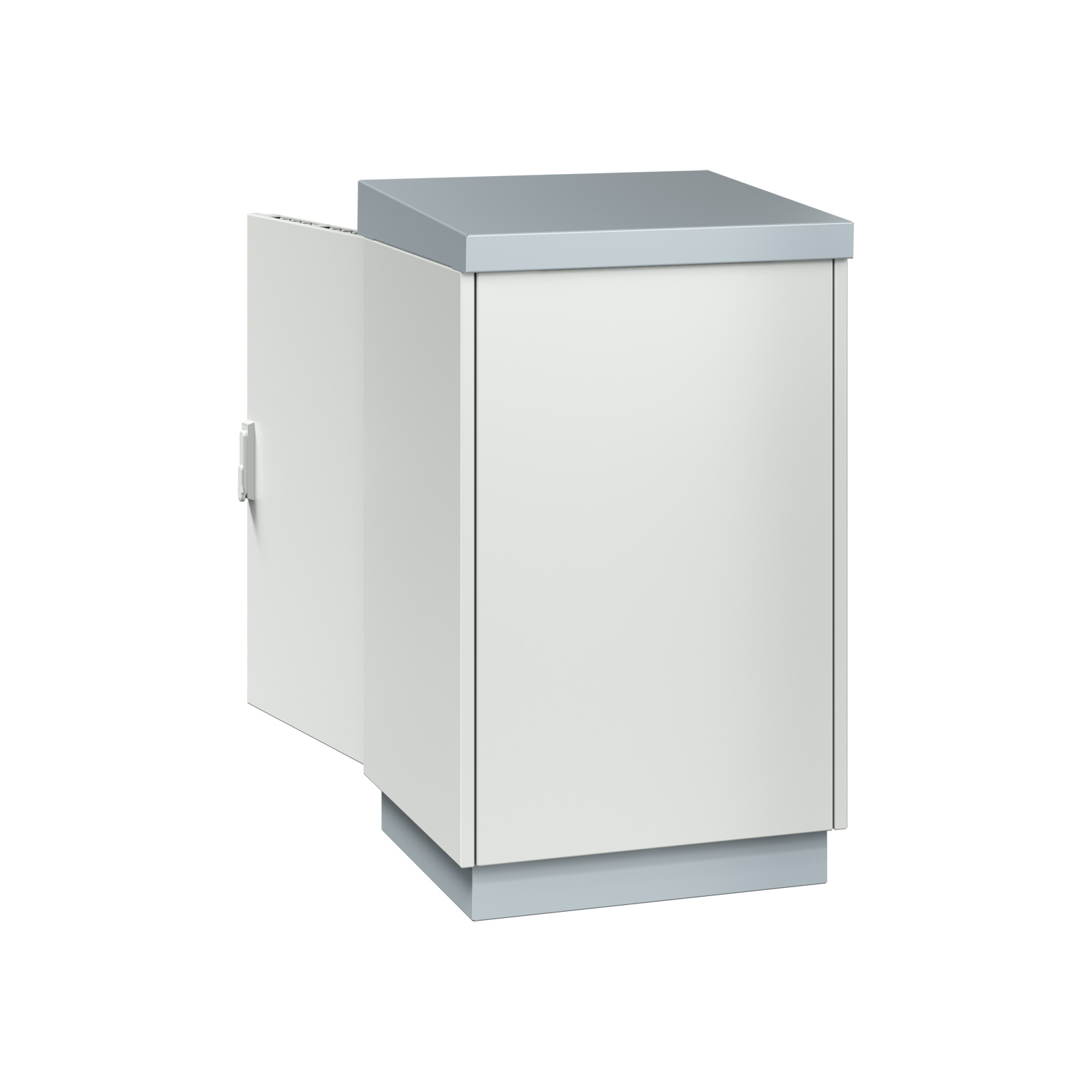

OMR-DW-106506-R-back-opened
