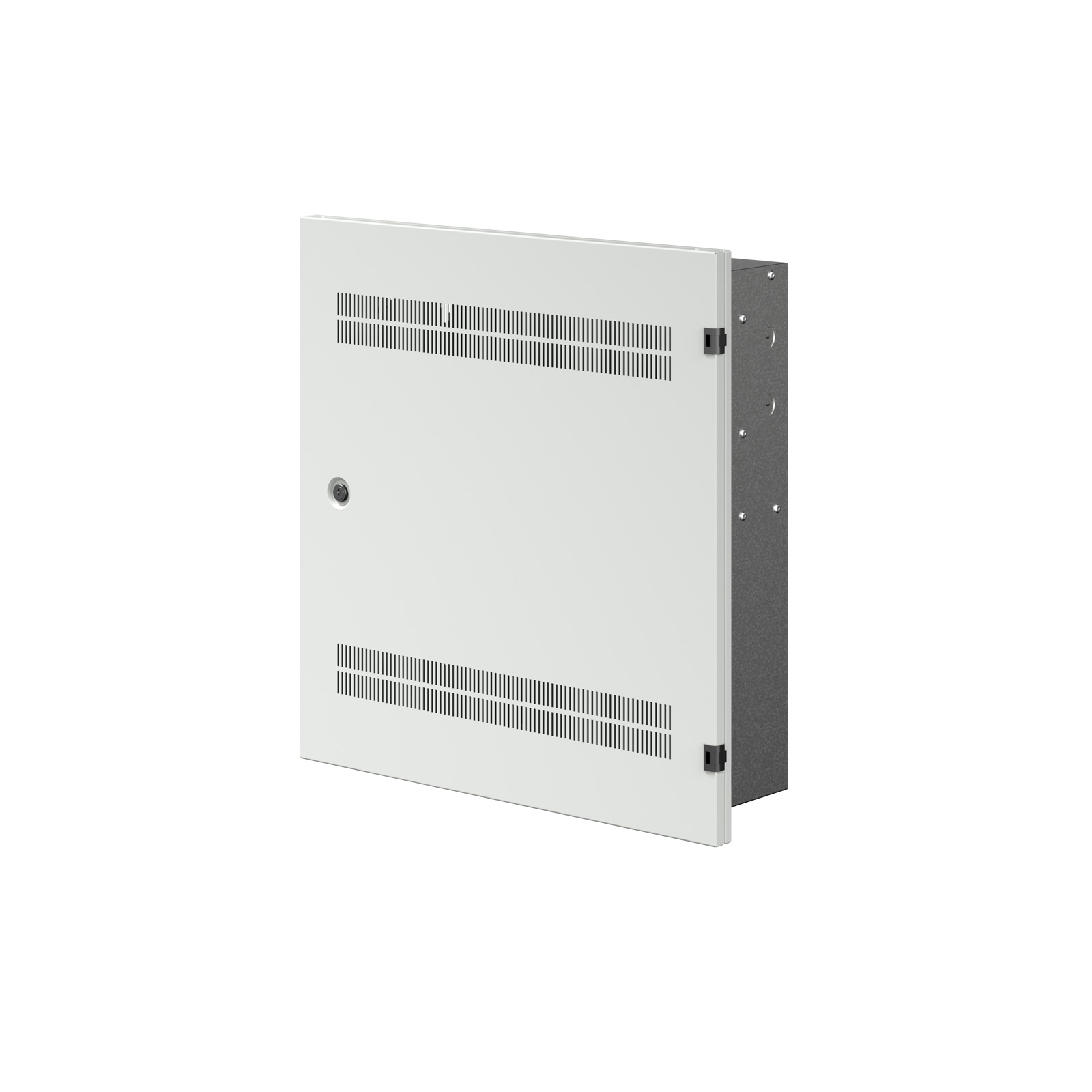

SOHO In-Wall ACP

The SOHO racks in the ACP series are designed for households and small offices and are "concealed" in the wall.

The racks in the SOHO In-Wall (19") series are designed for households and offers that are installed directly into the wall, which makes them an aesthetically pleasing solution for domestic networks. The SOHO In-Wall racks are equipped with 4U extrusions for horizontally mounted equipment, while 2U extrusions are available for deeper, vertically mounted equipment. Equipment is secured within a very small footprint that remains hidden until access is required. Wire management is built in to the SOHO In-Wall to ensure that copper and/or fiber cables can be managed properly.

MAIN ADVANTAGES:

  • Equipped with extrusions for both active equipment installation (2U) and mounting passivecomponents (4U)
  • Offers access to installed equipment through front door

Parameter Value
Height 550 mm
Width 530 mm
Depth 140 mm
Color RAL 7035 (other color designs available upon request)
Standard configuration 1 pair of fixed 19" vertical extrusions (4U)
1 pair of fixed 19" horizontal extrusions (2U)
1 perforated metal sheet door with lock
Datasheet

DS-soho-in-wall-en.pdf

File size: 552 kB

Other versions CZ de ru fr


File size: 97 kB



File size: 123 kB



File size: 98 kB



File size: 155 kB



File size: 189 kB

Catalog

Product Catalog—Data and Telecommunication Solutions and Racks

File size: 24466 kB

Brochure

Brochure—Complete Solutions for Datacenters

File size: 3003 kB

Brochure

Brochure—Solutions for Server Rooms and Cabling Installations

File size: 1210 kB

Accessories

Patch panels for KEYSTONE modules

Patch panels are mounted on  the 19" vertical extrusions and allow cable termination.

Show

Patch Panels for SOHO Mini REH

3 type of patch panels.

Show

Fastening and earthing bars for patch panels

CONTEG racks include a standard earthing kit.

Show

Fiber-Optic Splice Box

Fiber-optic splice boxes are used for the termination and fiber slack management of fiber-optic cables within racks.

Show

Wire Management Panels with Plastic Brackets

Fastening panels with plastic brackets are used for horizontal management and routing of cables in a rack.

Show

Wire Management Panels with Plastic Ducts

Vertical wire management panels are used for horizontal cable management in free-standing racks as well as wall-mounting and SOHO racks.

Show

Wire Management Panels with Metal Brackets

Fastening panels with metal brackets are used for horizontal management and routing of cables in a rack.

Show

Wire Management Panels with Plastic Brackets

10" wire management panels with plastic brackets for SOHO Mini REH

Show

Basic PDUs

The basic power distribution panels are used for power supply and its distribution to individual IT equipment in the racks.

Show
