WME Enclosures—Sheet Steel

Sheet-steel enclosure with epoxipolyester powder coating in RAL 7035 is the standard. We offer single-door and double-door enclosures.

WME compact rack cabinets made of sheet steel are suitable for indoor spaces for a variety of applications in industry and electrical engineering.

Our wide range of cabinet sizes with both full metal or glass-paneled doors, in one or two door design, are complemented by a rich assortment of accessories.

The structural design of the series offers high rigidity of not just the back panel but the entire cabinet. Manufacturing by laser welding technology lends the cabinets a clean design.

CONTEG can also create cut-outs and threads required for installations into cabinets on request.

MAIN ADVANTAGES:

  • The product line WME is UL-listed.

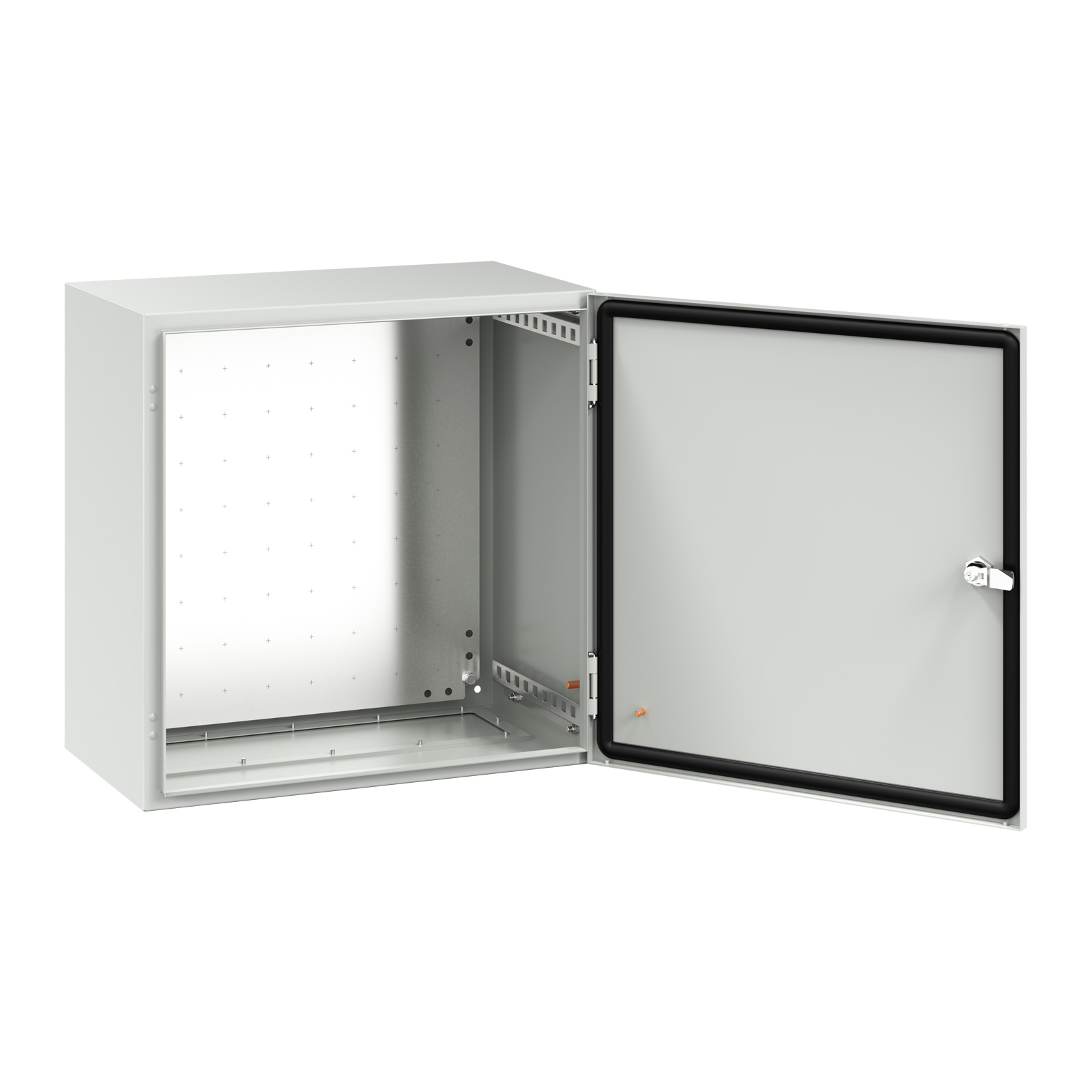

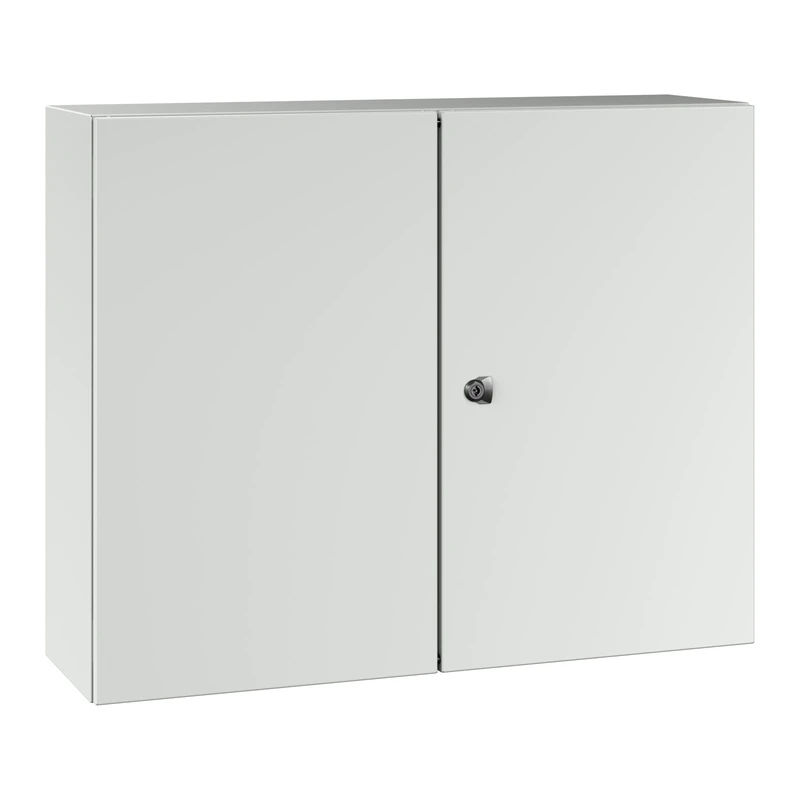

  • Single/double-door compact enclosure, hinges are on the right side for single-door enclosures (can be easily changed to left). Door(s) come with a PUR non-porous gasket and a cam lock or 3-point lock system.
  • Gland plate(s)
  • Perforated mounting rails on door(s) available for enclosures of minimum height 500 mm
  • Perforated mounting rails on sides available for enclosures of minimum depth 250 mm
  • Mounting plate with labeled 50×50 mm raster
  • Accessories for wall mounting

Parametr Value
Enclosure material Sheet steel
Mounting plate material Zinc-plated sheet steel
Enclosure surface finish material Epoxypolyester-powder coat
Color RAL7035 for indoor use only, other color options available
Protection degree IP66 single-door enclosure/IP55 double-door enclosure according to EN 60 529 *
Mechanical protection IK10 according to IEC 62262

* IP protection may be changed by installing some accessories

Datasheet

WME-WME-G_datasheet_EN_20220217.pdf

File size: 1438 kB

Other versions CZ fr


File size: 73 kB



File size: 73 kB



File size: 176 kB



File size: 69 kB



File size: 51 kB



File size: 124 kB



File size: 56 kB



File size: 47 kB

Catalog

Product Catalog—Industrial Cabinets

File size: 39148 kB

Catalog

Product Catalog—Outdoor Cabinets

File size: 15053 kB

Brochure

Brochure—Industrial Cabinets

File size: 2055 kB

Brochure

Brochure—Outdoor Cabinets

File size: 1868 kB

Accessories

Mounting plate

Spare zinc-plated mounting plate with labeled raster.

Show

Brackets for adjusting mounting plate

Brackets for variable adjustment of mounting plate in the enclosure.

Show

Interior door

Interior door are used to separate controls components from live parts inside of the enclosure.

Show

Viewing door

Viewing door to prevent access to control components that are installed on plain door.

Show

Locks/lock inserts for WME

We offer different types of locks and lock inserts.

Show

Plinths for WME

100mm high plinth allows placing the industrial enclosure on a firm base, for indoor and outdoor application.

Show

Door stop

Fixing the door in open position

Show

Pocket for documents

Self-adhesive plastic pocket for placing A4 documentation inside the enclosure.

Show

Lighting unit

The LED lighting unit for the interior installation of the enclosure.

Show

Cable glands and nuts with Pg/metric thread

Cable glands and nuts with Pg/metric thread meet required IP protection requirement of high IP protection and mechanical fastening.

Show

Full-metal gland plate

Spare full-metal gland plate of the enclosure for modification.

Show

Gland plate with cable-entry frame and cable inserts

Punched metal gland plate with cable-entry frame and cable inserts

Show

Rails for interior installation

Vertical perforated mounting rails for comfort installation of components.

Show

19" fixed extrusions

Inner 19” fixed extrusions for installation of IT/Telco componets.

Show

Door-mounting rails

Perforated horizontal door rails for installation of components etc. cables.

Show

Rain canopy

Canopy is suitable for outdoor applications where higher protection from the outdoor environment is needed.

Show

Baying kit - WME

Suitable for assembling the WME enclosures in a row while maintaining IP protection.

Show

Gland plate with round cable-entry plate

Punched metal gland plate with round cable-entry plate.

Show

Pole-mounting brackets for WME

Complete set for pole-mounting.

Show

Wall-mounting brackets for WME and outTEG OMR LITE

Brackets for direct wall mounting.

Show

Earthing for WME

Complete set of grounding cables that are necessary to use for the enclosure.

Show

Gland plate with cable-entry plate

Punched metal gland plate with cable-entry plate.

Show

Drainage device

The device allows to remove the condensate from the enclosure, in applications with high oscillation of ambient temperatures.

Show

Pressure Compensator

This device controls inside pressure during changes of outside temperatures.

Show

Filter Fans

Forced ventilation fans maintain the correct temperature inside the cabinet by exchanging heated inside air for cool outside air.

Show
