PREMIUM Server RF1

PREMIUM Server RF1

2 000

• Perforated door - 86% perforation rate

• Flip-up lever handle - DIN profile, universal key 333, optional numerical combination lock or electronic locks, single- or multi-point

• Door opening angle up to 190°

• Door hinge side easy to switch

• Tool-free disassembly and assembly

• Optional: single-leaf, with vertically divided glazing, all sheet metal, with a high perforation rate of 86%.

• Vertically split door with perforation - 86% perforation rate

• Flip-up lever handle - DIN profile, universal key 333, optional numerical combination lock or electronic locks, single- or multi-point

• Optional: single-leaf, with vertically divided glazing, all sheet metal, with a high perforation rate of 86%.

• Horizontally split, full side panels

• Detachable with locks

• Easy suspended installation

• Optional securing of side panels - DP-DR-SSP-RF1

• One-piece design, detachable

• 2 lateral cable openings with plastic brushes 88 mm wide and 600/800/1000 long for cabinets 800/1000/1200 mm deep

• Opening for ventilation unit:
  ~ 420 x 280 mm opening covered by a removable sheet cover allows for the installation of a ventilation unit with up to 6 fans
  ~ 420 x 440 mm opening covered by a removable sheet cover allows for the installation of a ventilation unit with up to 9 fans (only for 800 mm width with cabinet depth 1000 and 1200 mm)

• Other types upon request

• Detachable design

• First front part 240 mm deep, another part optional

Height-adjustable M12, plinth or plinth with flter to be ordered separately

• 2 pairs of sliding 19" type A vertical rails (600 and 800 mm) add 24U of installation space in 800 mm cabinets, applies to 42U racks and higher, adjustable from the inside

• Options for 800 mm wide cabinets: 2 pairs of V-type sliding eccentric rails with width adjustable from the outside to 19, 21, or 23"", load capacity 1500 kg

• Painted black

• U position markings on both the left and right side

• Markings on the horizontal brackets for easy adjustment of the positions of the rails – left and right

• Standard IP00

• IP 20 if bottom cover is installed

• IP 40 when full door, bottom cover and top cover are installed

• Options: up to IP 54, only with multi-point lock

• Preparation for air conditioning - IP 54, only when the air conditioning unit is installed with a multi-point lock

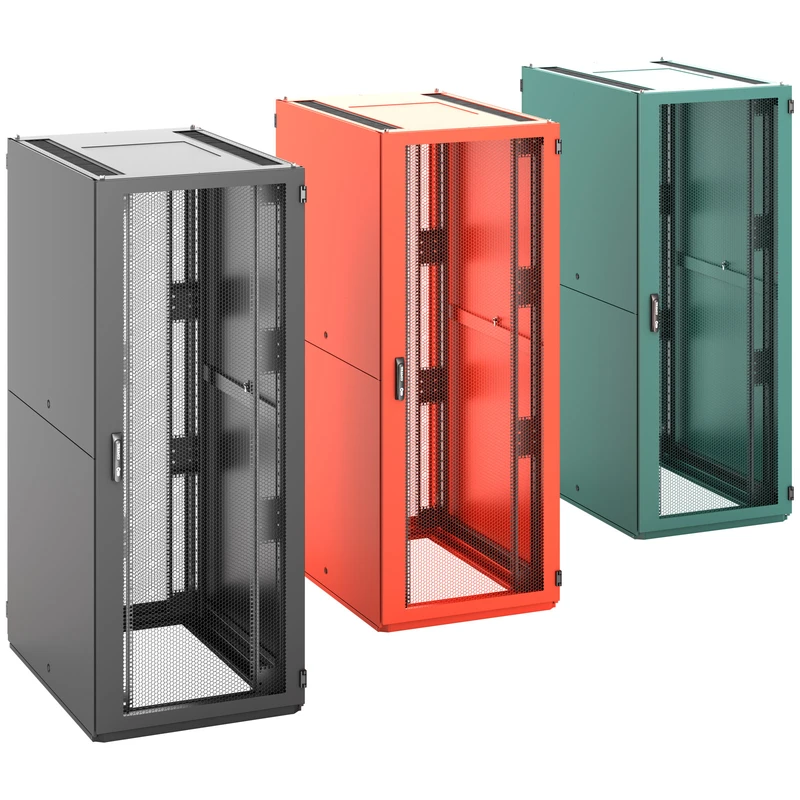

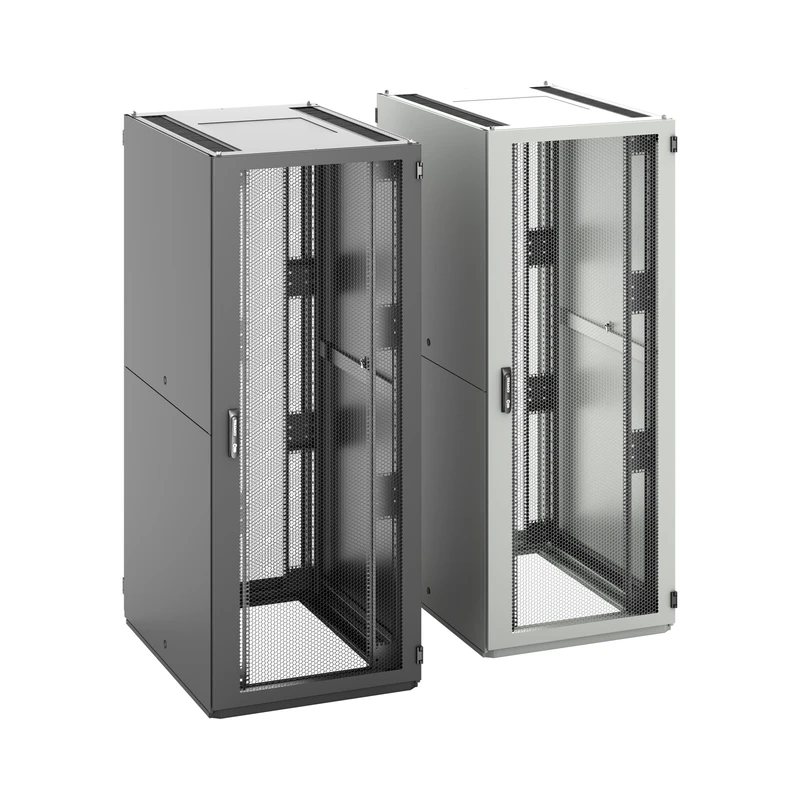

powder paint RAL 7035 or RAL 9005, other colors upon request

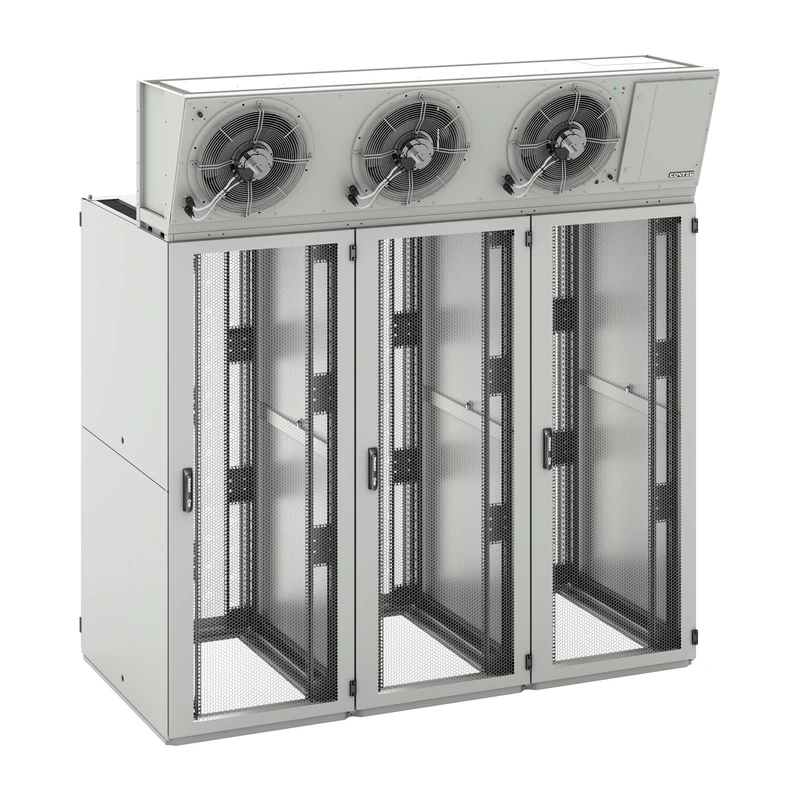

Compatible with rooftop, wall-mounted and side-mounted air conditioning units CoolSpot and CoolTeg

• Front door with 86% perforation with multi-point rotary lever lock

• Rear, vertically split door with 86% perforation with multi-point rotary lever lock

• 2 pairs of 19"" type A sliding rails

• Horizontal rail brackets

• 2 pairs of horizontally split side panels with locks

• Cabinet frame

• Removable H-shaped cover with lateral cable inlets and a ventilation unit opening

• Split bottom cover kit (includes first part)

• GND/grounding kit

• 28 mounting kits
